The Essence of Modern Living

A beautiful home that lets you live the life you want away from the buzz of a frantic world; the Lyndhurst is a tranquil sanctuary – close the front door and let the calm wash over you.

Spacious and serene - There’s no sacrifice of space in the Lyndhurst - with clearly defined zones creating generous family areas and accommodation retreats that make it feel like an oasis. The large, inviting Home Theatre creates an additional social space away from the hub of the home, while the Study at the front makes it easy to pop away from the action to fire off that last email!

Where it all happens - As in most homes, the main family action is bound to be in the heart of the Lyndhurst – the Family/Living, Dining and Kitchen zone that opens to the breezy optional Alfresco Cabana at the rear of the home. Designed to take advantage of the vistas of acreage living, this light-filled, open space beats with the pulse of everyday living – it’s free-flowing, multi-functional design yielding to all the demands of busy family life.

A well-deserved retreat - With the sumptuous Master Suite positioned well away from the remaining three bedrooms, the Lyndhurst offers parents serenity at the end of a long day. Entry through double doors reveals a blissful sanctuary with grand his-and-her Robes and a large, resort-style Ensuite.

Floor Plans

Show upgrades

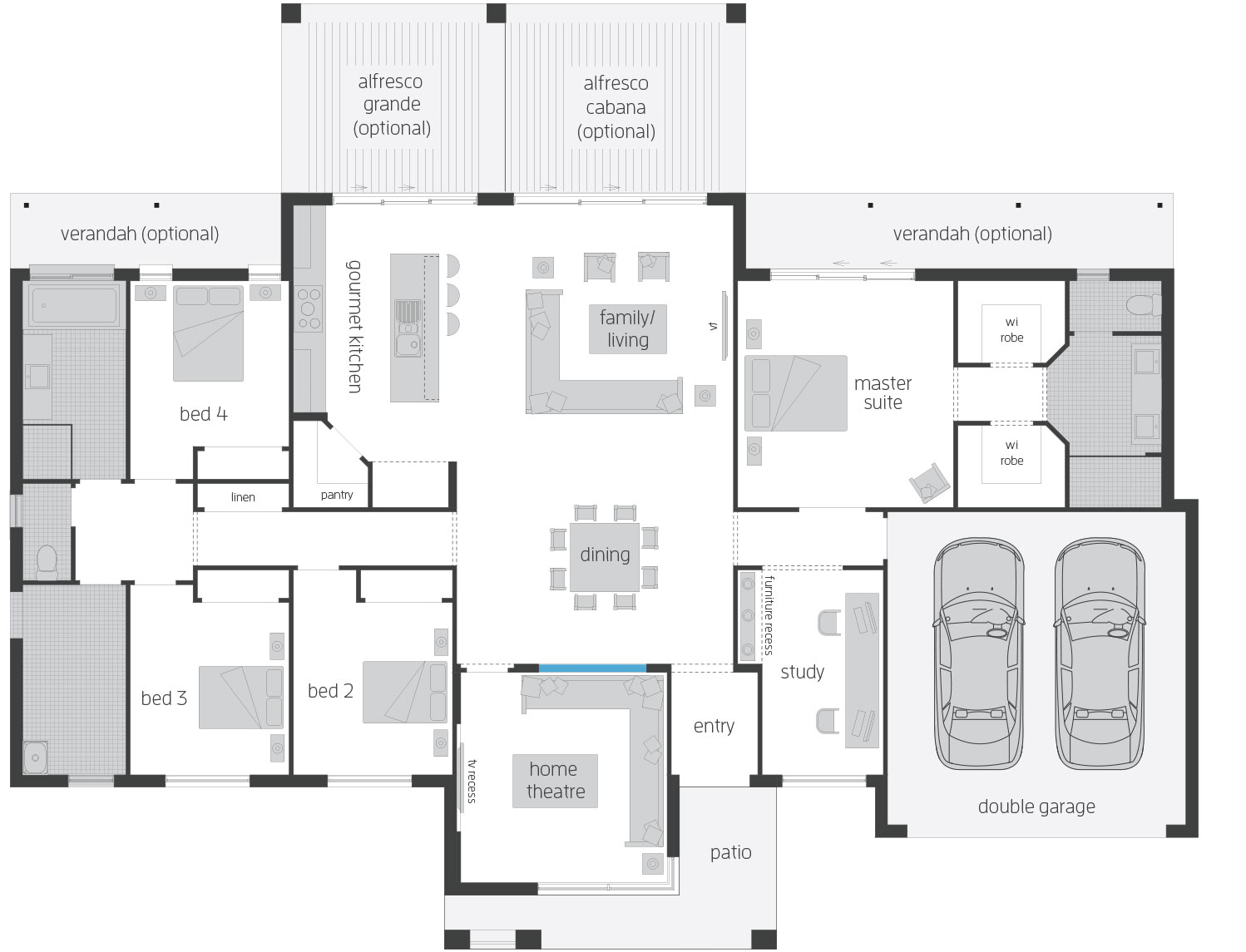

Lyndhurst- Acreage Floor Plan- McDonald Jones
Lyndhurst- Acreage Floor Plan- McDonald Jones
Note: Floor plan will differ slightly with application of different facades. Block widths required differ from area to area, are indicative only and subject to council guidelines and developer requirements. Please check with your Building and Design consultant for details in your area. Total (m²) area includes alfresco or alfresco grande. Non-fixed furniture shown on floor plans, including desks in Study and Study Nooks are indicative only and not included.
4
 Bed
2
 Bath
2
 Car
1
 Storey
Block Width
23.90m
House Width
22.00m
House Length
13.00m

Room Dimensions

Family/Living/Dining
5.1 x 8.5 (m)
Master Suite
4.0 x 4.2 (m)
Bed 2
3.0 x 3.2 (m)
Bed 3
3.0 x 3.2 (m)
Bed 4
3.0 x 3.1 (m)
Home Theatre
3.8 x 3.9 (m)
Study
2.3 x 3.8 (m)
Double Garage
5.5 x 5.8 (m)
Alfresco Cabana
4.8 x 3.5 (m)
Alfresco Grande
8.6 x 3.5 (m)

Additional Features

  • Home Theatre
  • Study
Show upgrades

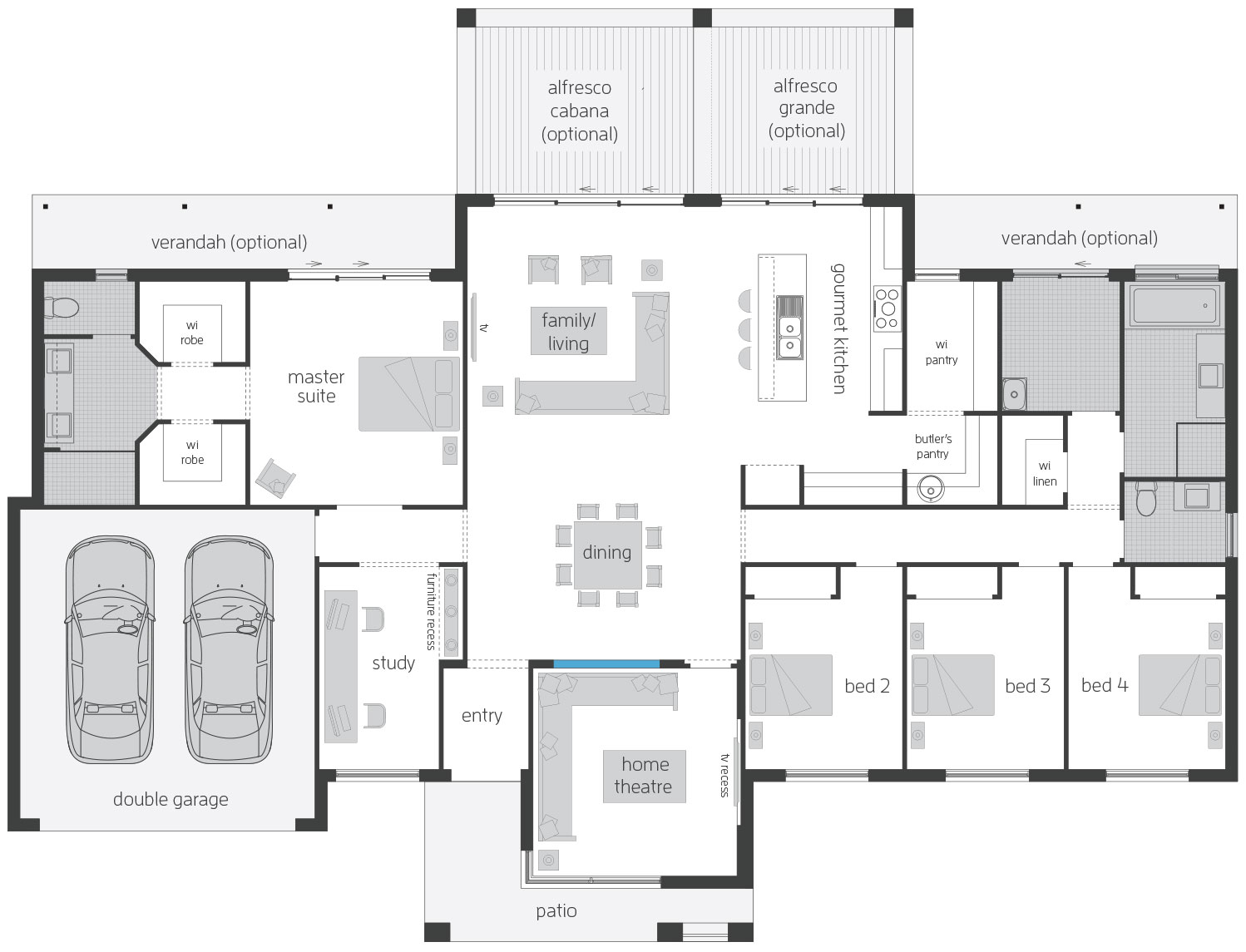

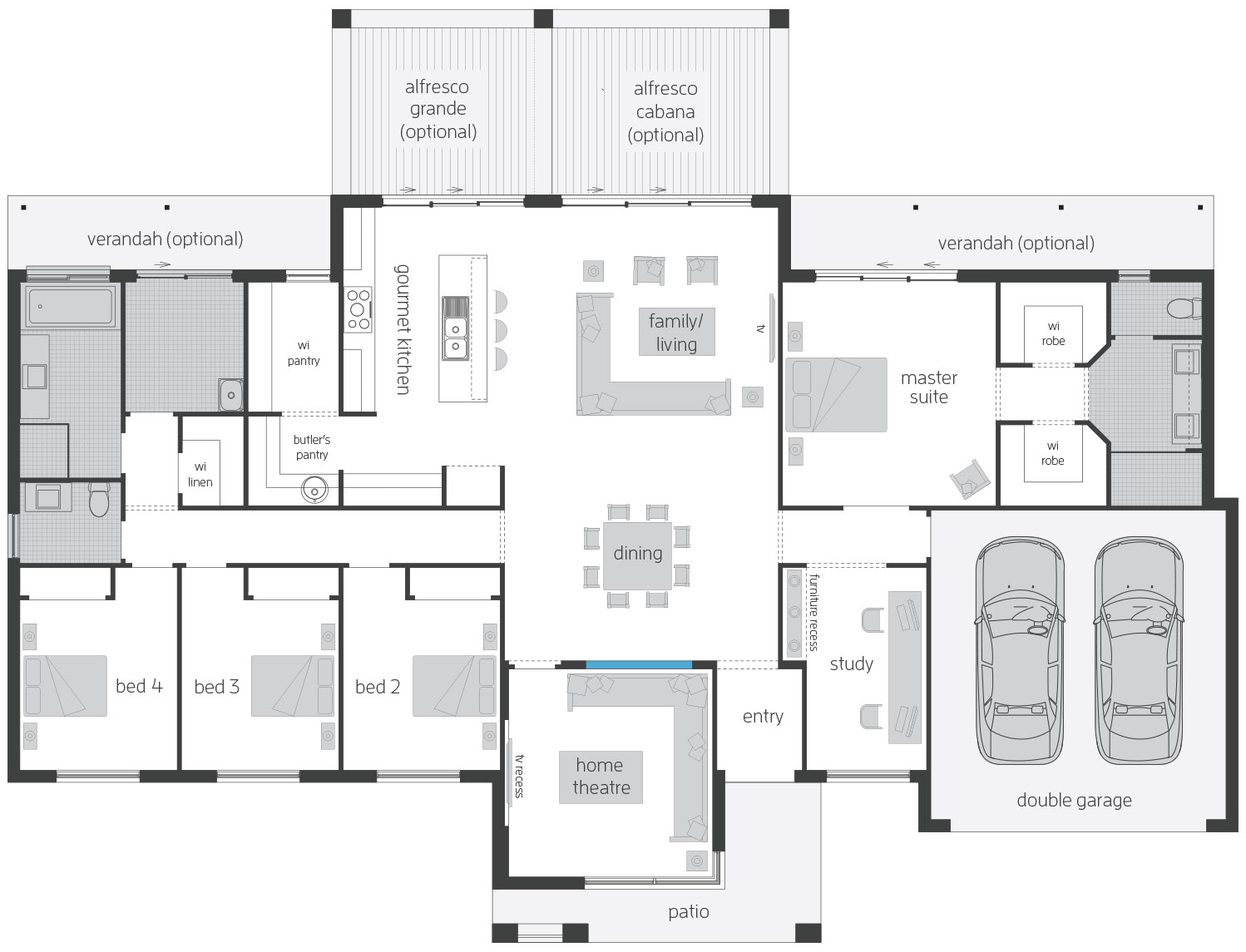

Lyndhurst Executive- Acreage Floor Plan- McDonald Jones
Lyndhurst Executive- Acreage Floor Plan- McDonald Jones
Note: Floor plan will differ slightly with application of different facades. Block widths required differ from area to area, are indicative only and subject to council guidelines and developer requirements. Please check with your Building and Design consultant for details in your area. Total (m²) area includes alfresco or alfresco grande. Non-fixed furniture shown on floor plans, including desks in Study and Study Nooks are indicative only and not included.
4
 Bed
2.5
 Bath
2
 Car
1
 Storey
Block Width
24.90m
House Width
23.04m
House Length
13.00m

Room Dimensions

Family/Living/Dining
5.1 x 8.5 (m)
Master Suite
4.0 x 4.2 (m)
Bed 2
3.0 x 3.2 (m)
Bed 3
3.0 x 3.2 (m)
Bed 4
3.0 x 3.2 (m)
Home Theatre
3.8 x 3.9 (m)
Study
2.3 x 3.8 (m)
Double Garage
5.5 x 5.8 (m)
Alfresco Cabana
4.8 x 3.5 (m)
Alfresco Grande
8.6 x 3.5 (m)

Additional Features

  • Home Theatre
  • Study
  • Butler's Pantry
Show upgrades

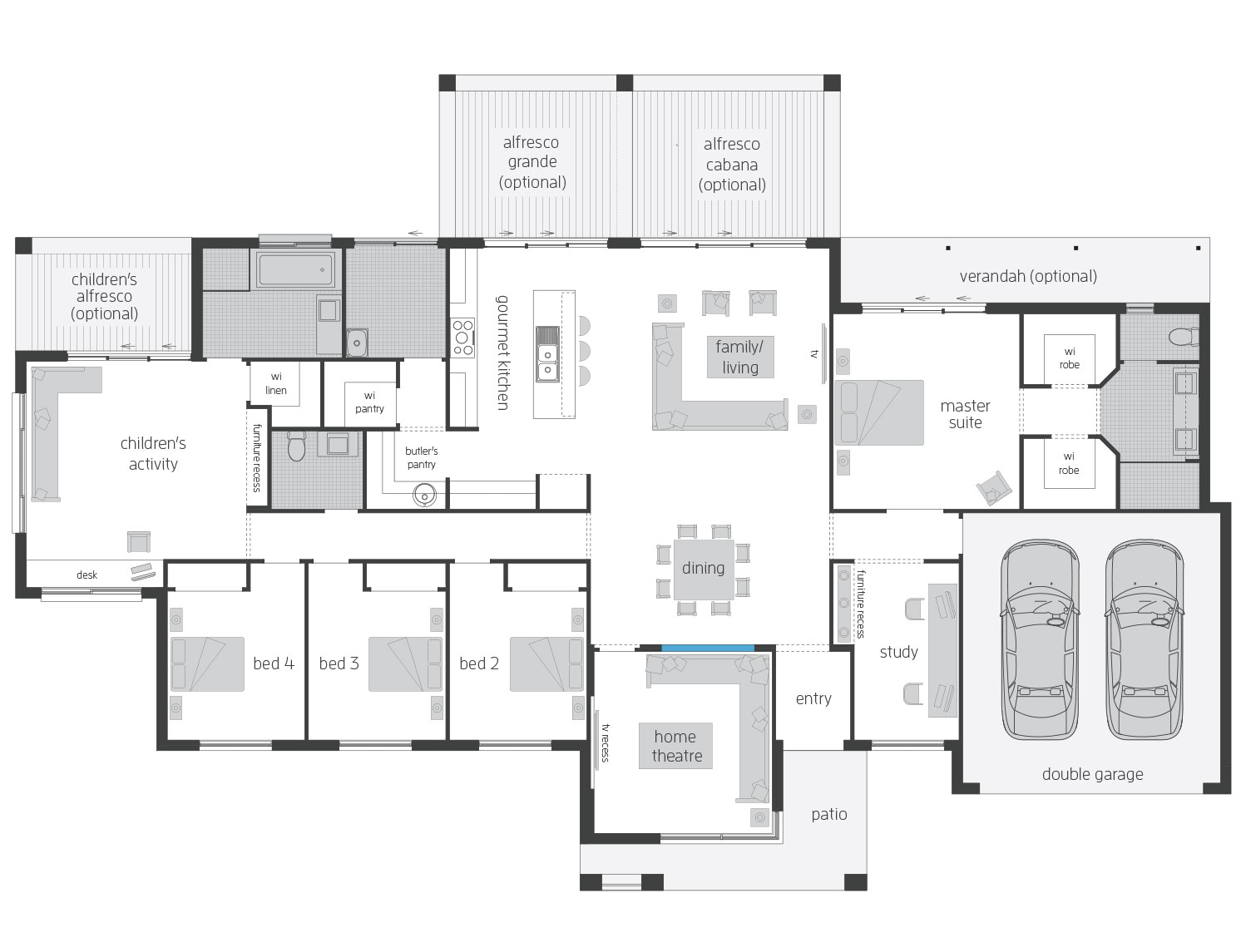

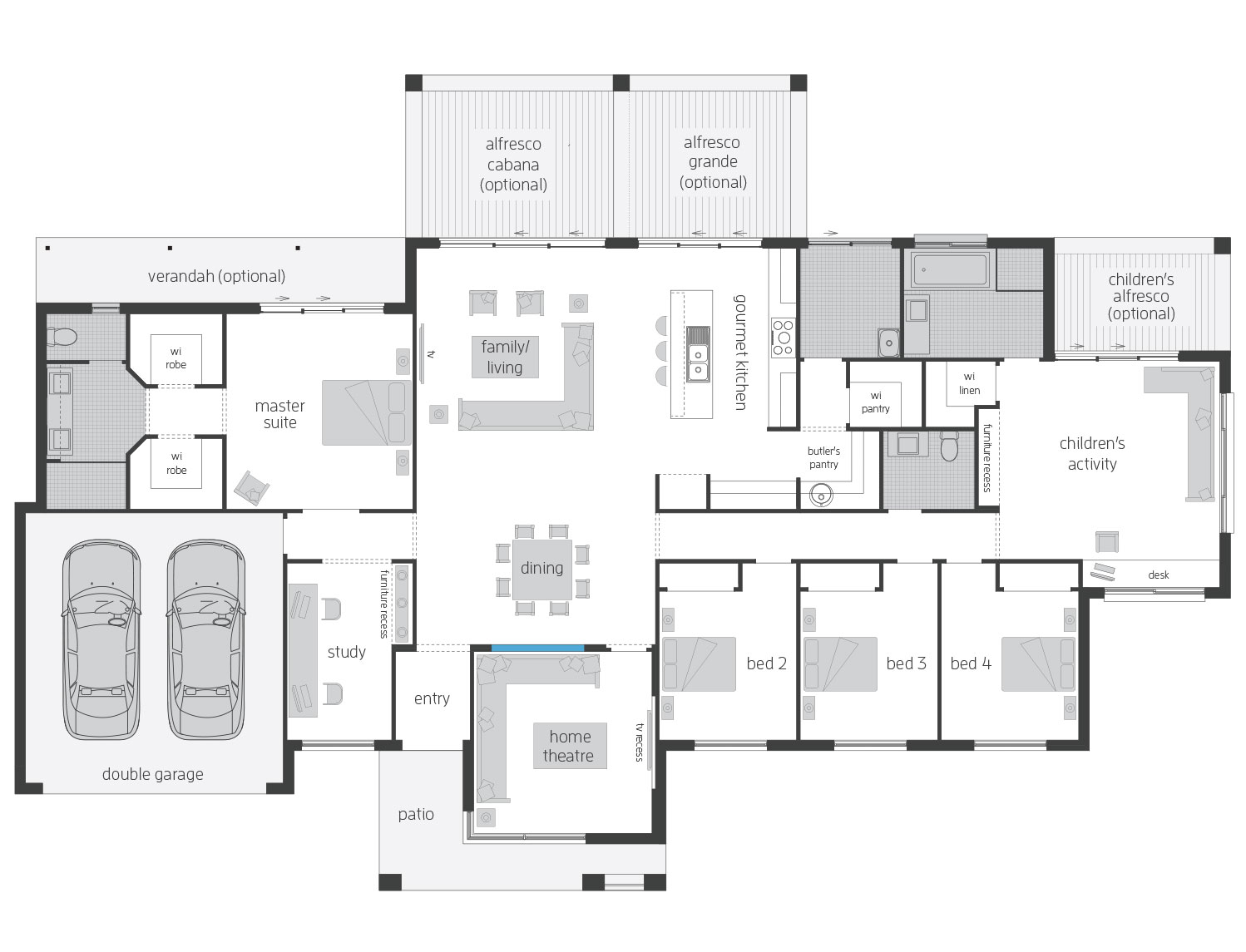

Lyndhurst Grande- Acreage Floor Plan- McDonald Jones
Lyndhurst Grande- Acreage Floor Plan- McDonald Jones
Note: Floor plan will differ slightly with application of different facades. Block widths required differ from area to area, are indicative only and subject to council guidelines and developer requirements. Please check with your Building and Design consultant for details in your area. Total (m²) area includes alfresco or alfresco grande. Non-fixed furniture shown on floor plans, including desks in Study and Study Nooks are indicative only and not included.
4
 Bed
2.5
 Bath
2
 Car
1
 Storey
Block Width
27.90m
House Width
26.06m
House Length
13.00m

Room Dimensions

Family/Living/Dining
5.1 x 8.5 (m)
Master Suite
4.0 x 4.2 (m)
Bed 2
3.0 x 3.2 (m)
Bed 3
3.0 x 3.2 (m)
Bed 4
3.0 x 3.2 (m)
Home Theatre
3.8 x 3.9 (m)
Children’s Activity
4.7 x 4.3 (m)
Study
2.3 x 3.8 (m)
Double Garage
5.5 x 5.8 (m)
Alfresco Cabana
4.8 x 3.5 (m)
Alfresco Grande
8.6 x 3.5 (m)
Children's Alfresco
3.8 x 2.4 (m)

Additional Features

  • Home Theatre
  • Children's Activity
  • Study
  • Butler's Pantry
Show upgrades

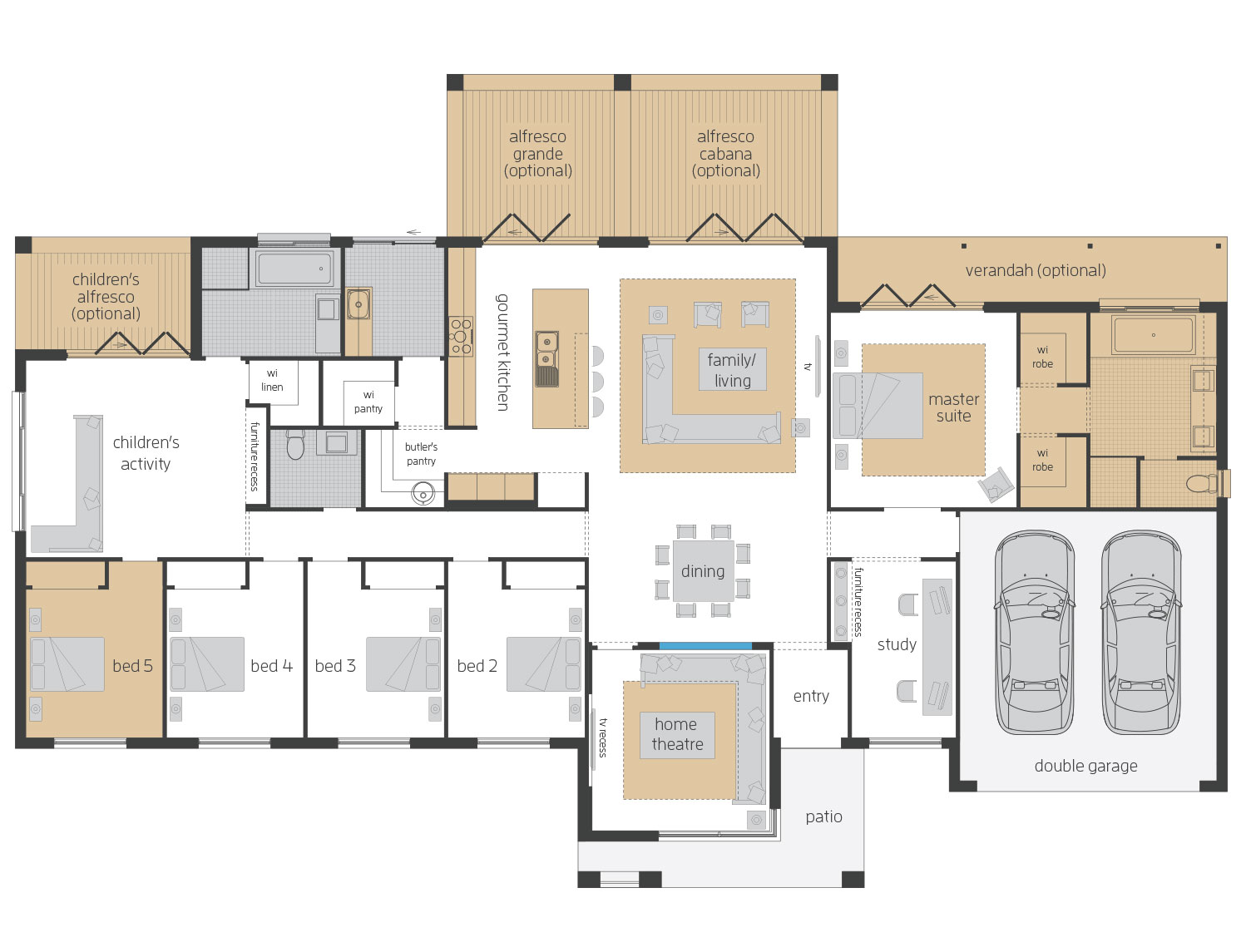

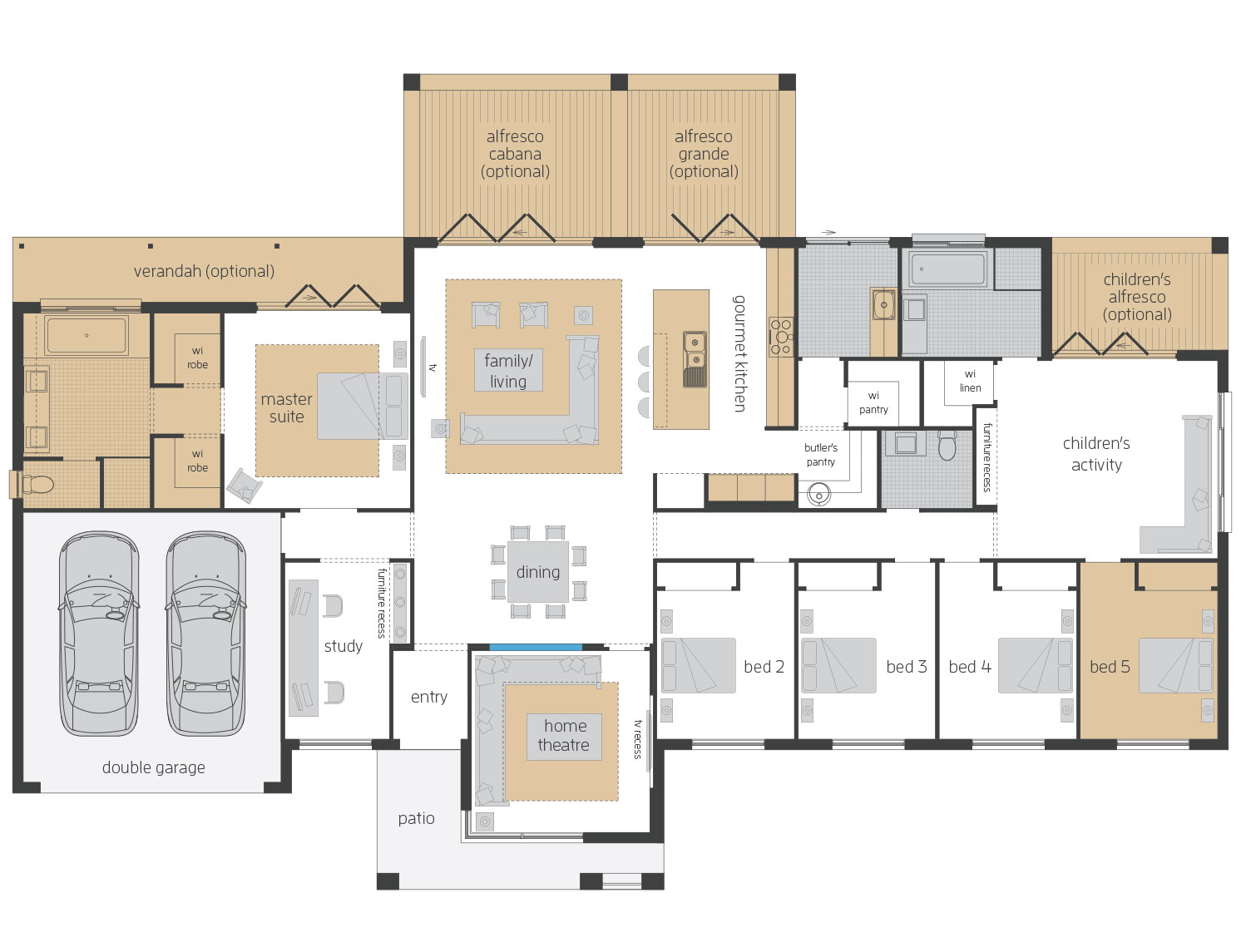

Lyndhurst Grande- Acreage Floor Plan Upgrade- McDonald Jones
Lyndhurst Grande- Acreage Floor Plan Upgrade- McDonald Jones
Note: Floor plan will differ slightly with application of different facades. Block widths required differ from area to area, are indicative only and subject to council guidelines and developer requirements. Please check with your Building and Design consultant for details in your area. Total (m²) area includes alfresco or alfresco grande. Non-fixed furniture shown on floor plans, including desks in Study and Study Nooks are indicative only and not included.
5
 Bed
2.5
 Bath
2
 Car
1
 Storey
Block Width
27.90m
House Width
26.06m
House Length
13.00m

Room Dimensions

Family/Living/Dining
5.1 x 8.5 (m)
Master Suite
4.0 x 4.2 (m)
Bed 2
3.0 x 3.2 (m)
Bed 3
3.0 x 3.2 (m)
Bed 4
3.0 x 3.2 (m)
Bed 5
3.0 x 3.2 (m)
Home Theatre
3.8 x 3.9 (m)
Children’s Activity
4.7 x 4.3 (m)
Study
2.3 x 3.8 (m)
Double Garage
5.5 x 5.8 (m)
Alfresco Cabana
4.8 x 3.5 (m)
Alfresco Grande
8.6 x 3.5 (m)
Children's Alfresco
3.8 x 2.4 (m)

Additional Features

  • Home Theatre
  • Children's Activity
  • Study
  • Butler's Pantry

Upgrade Options

  • Alfresco Cabana 4.8m x 3.5m
  • Alfresco Grande 8.6m x 3.5m
  • Alternate Kitchen layout with two appliance towers
  • Alternate Ensuite with bath tub
  • Bed 5 option
  • Bi-fold Door to Children's Activity, Family/Living, Kitchen and Master Suite
  • Children's Activity Alfresco 3.8m x 2.4m
  • Coffered ceiling to Family/Living, Home Theatre and Master Suite
  • Laundry bench with overhead cupboards
  • Rear Verandah

Enquiry



Enquire about your favourite home design today or give a building and design consultant a call on 1300 555 382.

* Note: If you're enquiring about Granny Flats, they are not offered as a stand-alone build, they are constructed at the same time as your main residence.

Inclusions

Kitchen
Internal
Bathroom
External
NSW - European designed gourmet kitchen with laminated bench tops - select from a wide range of colours.
NSW - Dishwasher opening with connections.
NSW - Microwave shelf with power point.
NSW - Large pantry with ventilated shelving.
NSW - Fridge area for 1.0 wide fridge freezer unit.
NSW - Tapware: Posh Bristol MkII Mixer Tap.
NSW - Full height ceramic tiling to Kitchen bench splash back.
NSW - Choice of quality Omega cooking appliances: Cooktop - Gas Omega OG60XA (stainless steel)/Electric Omega OC64KZ, Oven – OO651XR (stainless steel), Rangehood – Recirculating ORW9XA stainless steel canopy.
ACT - European designed gourmet laminated kitchen with attractive laminated bench tops with overhead cupboards and bulkhead.
ACT - Dishwasher opening with connections.
ACT - Microwave shelf with power point.
ACT - Large pantry with ventilated shelving.
ACT - Posh Solus MkII 1 ¾ bowl overmount sink.
ACT - Fridge area for 1.0m wide fridge freezer unit.
ACT - Full height ceramic tiling to Kitchen bench splash back.
ACT - Choice of quality Omega cooking appliances: Cooktop 600mm – Gas Omega OG60XA (stainless steel)/Electric Omega OC64KZ, Oven 600mm – OO651XR (stainless steel), Rangehood 900mm – Recirculating ORW9XA stainless steel canopy.
NSW - Insulation - R3.0 insulation to ceilings & R2.0 to external walls excluding garage.
NSW - Ceilings - 2416mm nominal ceiling height.
NSW - Cornice - 75mm cove cornice.
NSW - Paint - Taubmans ‘Endure’ to all internal walls -2 coat system, Flat acrylic to ceiling, Gloss enamel to interior timber & internal/external doors.
NSW - Electrical – As per the standard electrical plan.
NSW - Smoke Detectors - As per the standard electrical plan wired direct to mains power.
NSW - Doors - Flush Panel doors, Cushioned door stops, Glass sliding doors with key locks.
NSW - Door Furniture - Gainsborough 300 Contractor Series.
NSW - Double door robes where shown with melamine shelves.
NSW - Tapware - Laundry: Base MK2 Mixer Tap.
NSW - Clarke Eureka Plus laundry tub.
ACT - Insulation - R4.1 insulation to ceilings and R2.0 to external walls excluding Garage, Patio and Alfresco (excludes insulation between ground floor and first floor for Two Storey and Split Level).
ACT - Insulation - Insulated lagging to hot and cold water pipes in ceiling space One roof ventilator and two eave vents.
ACT - Insulation - Anticon foil faced blanket (only applicable for Colorbond roof).
ACT - Ceilings - 2400mm nominal ceiling height.
ACT - Cornice - 75mm cove cornice.
ACT - Paint - Taubmans ‘Endure’ to all internal walls -2 coat system, Flat acrylic to ceiling, Gloss enamel to interior timber and internal/external doors.
ACT - Electrical - As per standard electrical plan, including smoke detectors wired direct to mains power.
ACT - Doors - Front door: standard selection from Hume Doors (Vaucluse range), Laundry door: XF3 with half glazed panel or glass sliding door( design specific), Internal: Flush Panel doors, Cushioned door stops, Glass sliding doors with key locks.
ACT - Doors - 42mm half splayed architraves and mouldings.
ACT - Door Furniture - Front entry & Laundry: Gainsborough Governor, Internal: Gainsborough 300 Contractor Series.
ACT - Double door robes with pull handle including fixed melamine shelf and hanging rail.
ACT - Clarke Eureka Plus laundry tub.
ACT - Stairs (Two Storey & Split Level only) - Painted timber stringers with medium density fibreboard (MDF) treads and risers, painted handrail and square wrought iron balusters (expansion joint in stairwell covered by painted timber trim).
NSW - Large selection of ceramic tiles.
NSW - 1800mm high semi framed shower screens with clear toughened glass and pivot door.
NSW - Bermuda 3 Function Rail Shower.
NSW - Frameless mirror above vanity.
NSW - Mizu Drift towel rail or rings (where applicable).
NSW - Tapware - Bathroom/Ensuite: Posh Bristol MkII Mixer Tapware.
NSW - Mizu Drift toilet roll holder.
NSW - Quality Decina bath.
NSW - Stylus Symphony Linked Toilet Suite.
ACT - Large selection of ceramic tiles.
ACT - 1800mm high semi framed shower screens with clear toughened glass and pivot door.
ACT - Bermuda 3 function shower rail.
ACT - Framed mirror above vanity.
ACT - Mizu Drift towel rail or rings (where applicable).
ACT - Mizu Drift toilet roll holder.
ACT - Quality Decina bath.
ACT - Stylus Symphony Linked toilet suite.
ACT - Tapware: Posh Bristol MkII Mixer Tapware
NSW - Facade - As per Artist’s impression in face bricks and concrete tiles.
NSW - Windows - Architectural styled aluminium windows as per facade selected. Energy efficient weather seals and locks to all windows.
NSW - Bricks - Choose from an extensive range of bricks from our manufacturer Austral (Everyday Life and Old Colonial).
NSW - Roof Tiles - Concrete roof tiles from Bristile (Classic range). This will create hundreds of no charge combinations.
NSW - Hot Water - Rheem Stellar 160lt, 5 star storage gas hot water system.
NSW - Doors - Front door: standard selection from Hume Doors (Vaucluse Range), Laundry door: XF3 with half glazed panel or glass sliding door( Design Specific).
NSW - Door Furniture - Front entry: Gainsborough Governor, Laundry : Gainsborough Governor.
NSW - Garage Door - 4.8 wide Panelmasta sectional door.
NSW - Concrete Floor - Engineer designed to M classification. Cover Grade concrete finish to Patio’s and Alfresco’s (where applicable).
NSW - Reticulated chemical pest protection.
NSW - Timber frame/22.5° pitch roof trusses (based on wind rating NW2 33N).
NSW - 42mm half splayed architraves and mouldings.
NSW - 180 day fixed price tender.
NSW - Tap - External: Front and rear.
ACT - 180 day fixed price tender.
ACT - Timber frame/22.5° pitch roof trusses (based on wind rating N2 W33N).
ACT - Geotechnical soil classification report.
ACT - Electronic detailed contour survey.
ACT - Fixed priced piering (concrete or screw piers) to even bearing as determined by engineer in accordance to standards AS 2870-2011.
ACT - Facade - Classic facade as artist’s impression in face bricks and concrete roof tiles.
ACT - Windows - Architectural styled aluminium windows as per facade selected.
ACT - Window hardware - Energy efficient weather seals and locks to all windows.
ACT - Concrete floor - Engineer designed to M classification.
ACT - Concrete floor - Engineer designed structural steel beams (where applicable).
ACT - Cover Grade concrete finish to Patio’s and Alfresco’s (where applicable).
ACT - Bricks - Choose from an extensive range of bricks from our manufacturer Austral (Everyday Life and Old Colonial).
ACT - Roof tiles - Concrete roof tiles from Bristile (Classic range).
ACT - Rheem Stellar 160lt, 5 star storage gas hot water system.
ACT - 4,500L aboveground slimline Colorbond water tank on concrete slab with pump and 90mm painted downpipes.
ACT - Garage door - 4.8 wide sectional overhead garage door.
ACT - Balconies (Two Storey & Split Level Only) - External handrails (where applicable) are aluminium powder coated picket style handrail.
ACT - Balconies (Two Storey Only) - Tiled Balcony floors with slip resistant tiles from the standard range of floor tiles (excludes Split Level balconies).
ACT - Split Level Only - Deck (rear split) - Modwood Composite Deck in choice of colours.
ACT - Split Level Only - Deck Handrail (rear split) - Aluminium Powdercoated Picket Style.
ACT - Split Level Only - Flooring - concrete slab to ground floor, yellow tongue to mid and first floor.
ACT - Split Level Only - Piers - 90x90 steel.
