Don't Be Squeezed In

The Hamilton floor plans offer the very best in versatile architectural design for narrow blocks. Suitable for a range of locations, budgets and lifestyles, each design provides practical living with a unique sense of space for the modern family.

Make it your own - Various options in the range ensure you can make the Hamilton your own, with features like the Built-In Desk in the Hamilton Two, Study Nook in the Hamilton Four, and cosy Home Theatre in the Hamilton Five, catering for the individual needs of modern families.

Time to turn in - The accommodation wing has three comfortable Bedrooms, including a Master Suite with a Walk-In Robe and stylish Ensuite at the front of the home, while the Hamilton Four and Five give you the option of an additional fourth Bedroom.

Uninterrupted flow - A central hallway connects the accommodation retreats to the shared living spaces, creating a seamless flow that’s brought to life in the spacious and versatile family area. Finished with everyday living essentials, including a Built-In Pantry and a luxurious island bench, the open-plan Kitchen, Dining and Family/Living zones combine to make every day easy and pleasurable.

Magic mirror - The true versatility of this clever design is revealed at the rear of the home, with the Hamilton Three, Four and Five offering the option of being mirror reversed to suit your aspect and the flexibility of including a Double Garage.


Floor Plans

Hamilton One

Hamilton Two

Hamilton Three

Hamilton Four

Hamilton Five
Show upgrades

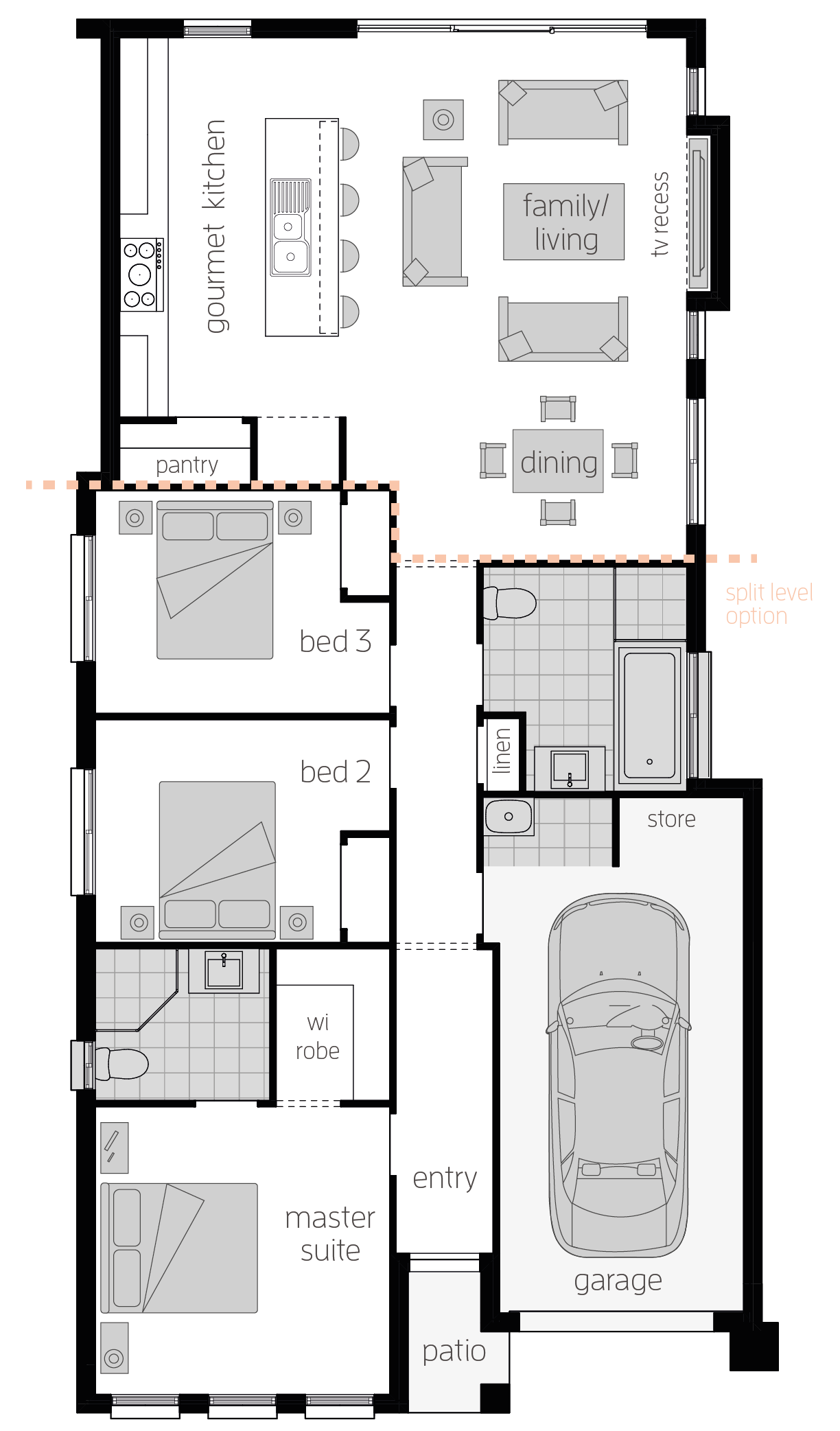

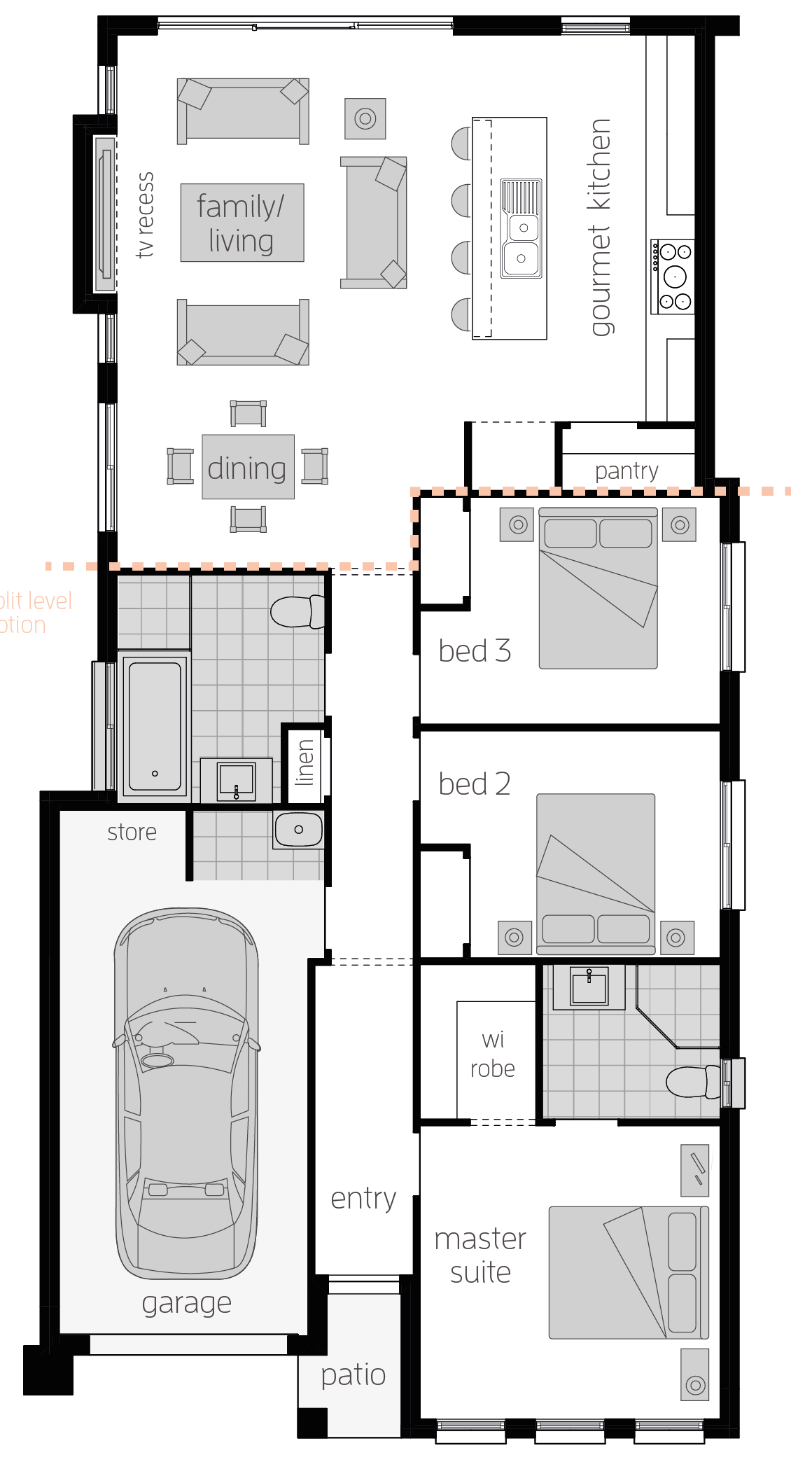

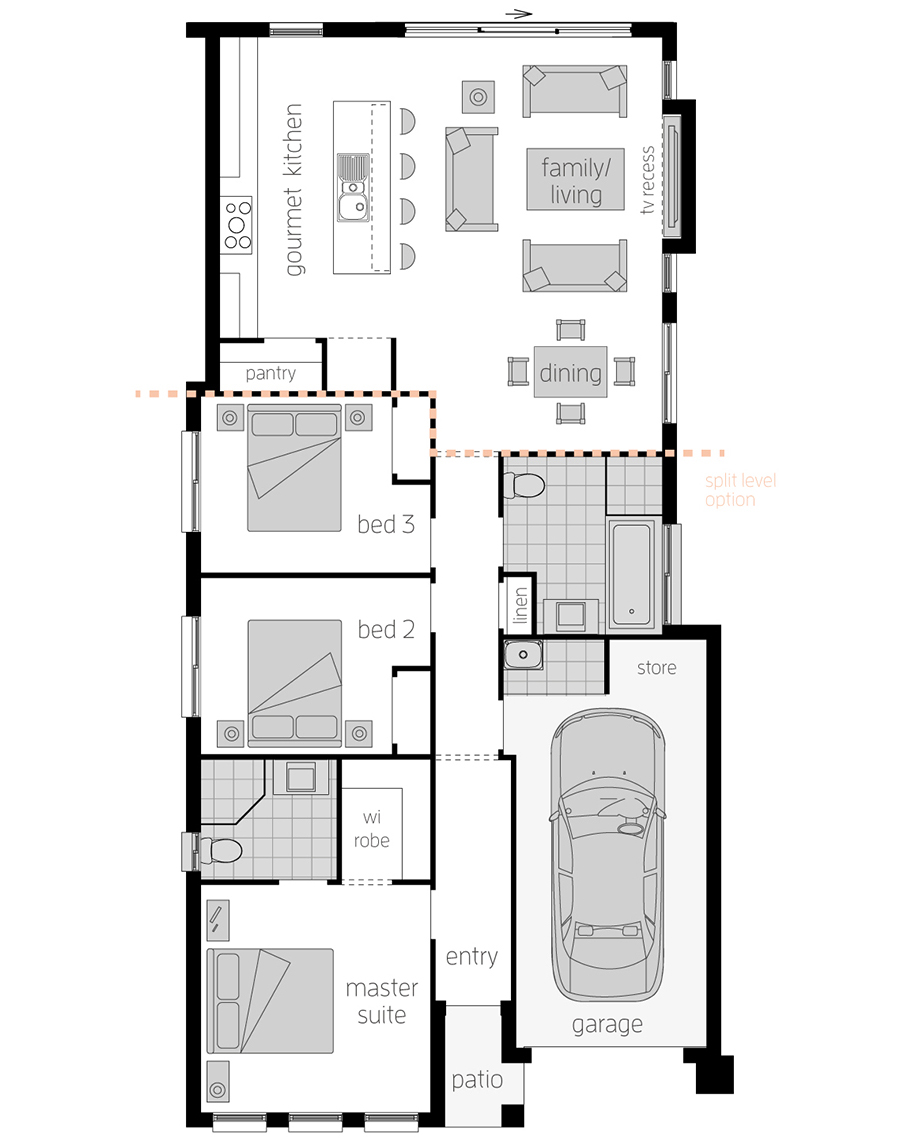

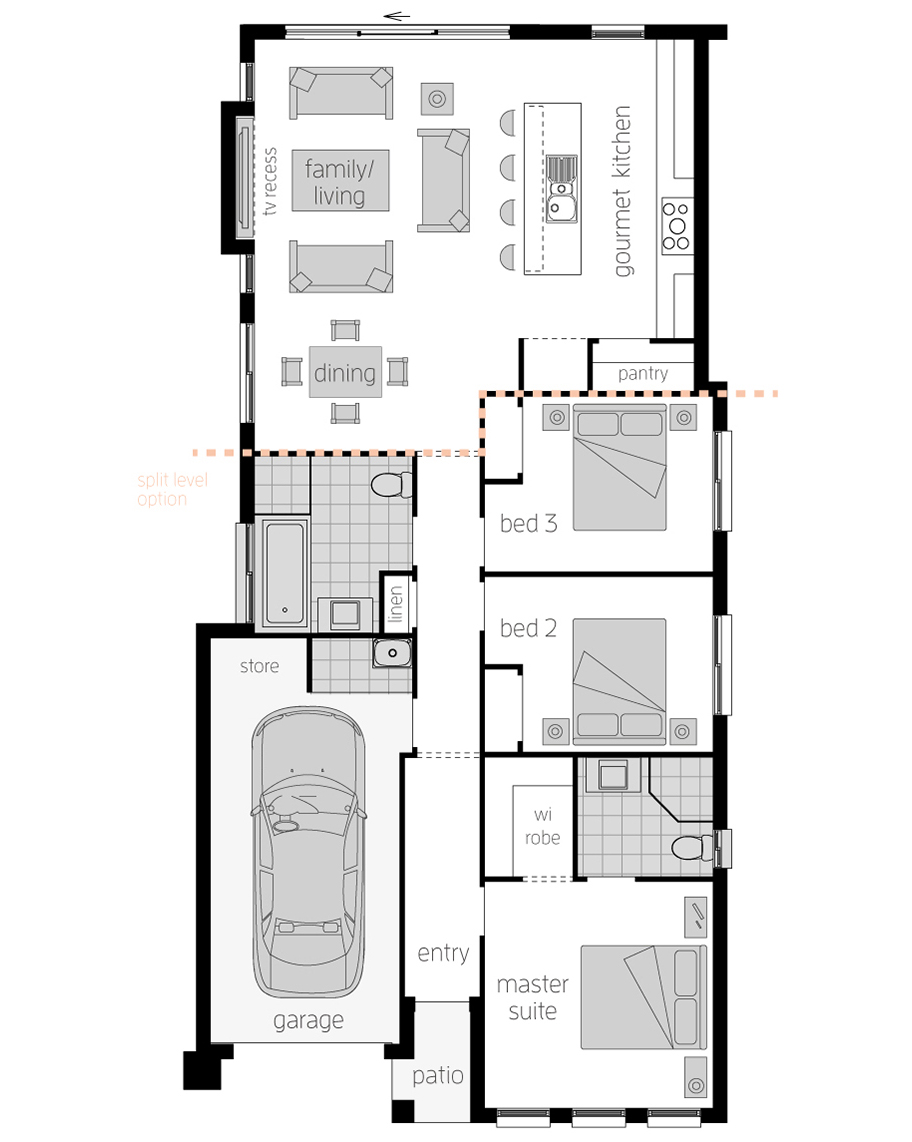

Hamilton One- Single Storey Floor Plan - McDonald Jones
Hamilton One- Single Storey Floor Plan - McDonald Jones
Note: Floor plan will differ slightly with application of different facades. Block widths required differ from area to area, are indicative only and subject to council guidelines and developer requirements. Please check with your Building and Design consultant for details in your area. Total (m²) area includes alfresco or alfresco grande. Non-fixed furniture shown on floor plans, including desks in Study and Study Nooks are indicative only and not included.
3
 Bed
2
 Bath
1
 Car
1
 Storey
Block Width
10.00m
 House Width
8.45m
 House Length
17.19m

Room Dimensions

Family/Living/Dining
4.3 x 6.5 (m)
Master Suite
3.6 x 3.6 (m)
Bed 2
3.6 x 2.8 (m)
Bed 3
3.6 x 2.8 (m)
Single Garage
3.0 x 6.4 (m)

Additional Features

  • Built-in storage throughout
x
Hamilton One- Single Storey Floor Plan - McDonald Jones
Hamilton One- Single Storey Floor Plan - McDonald Jones
Show upgrades

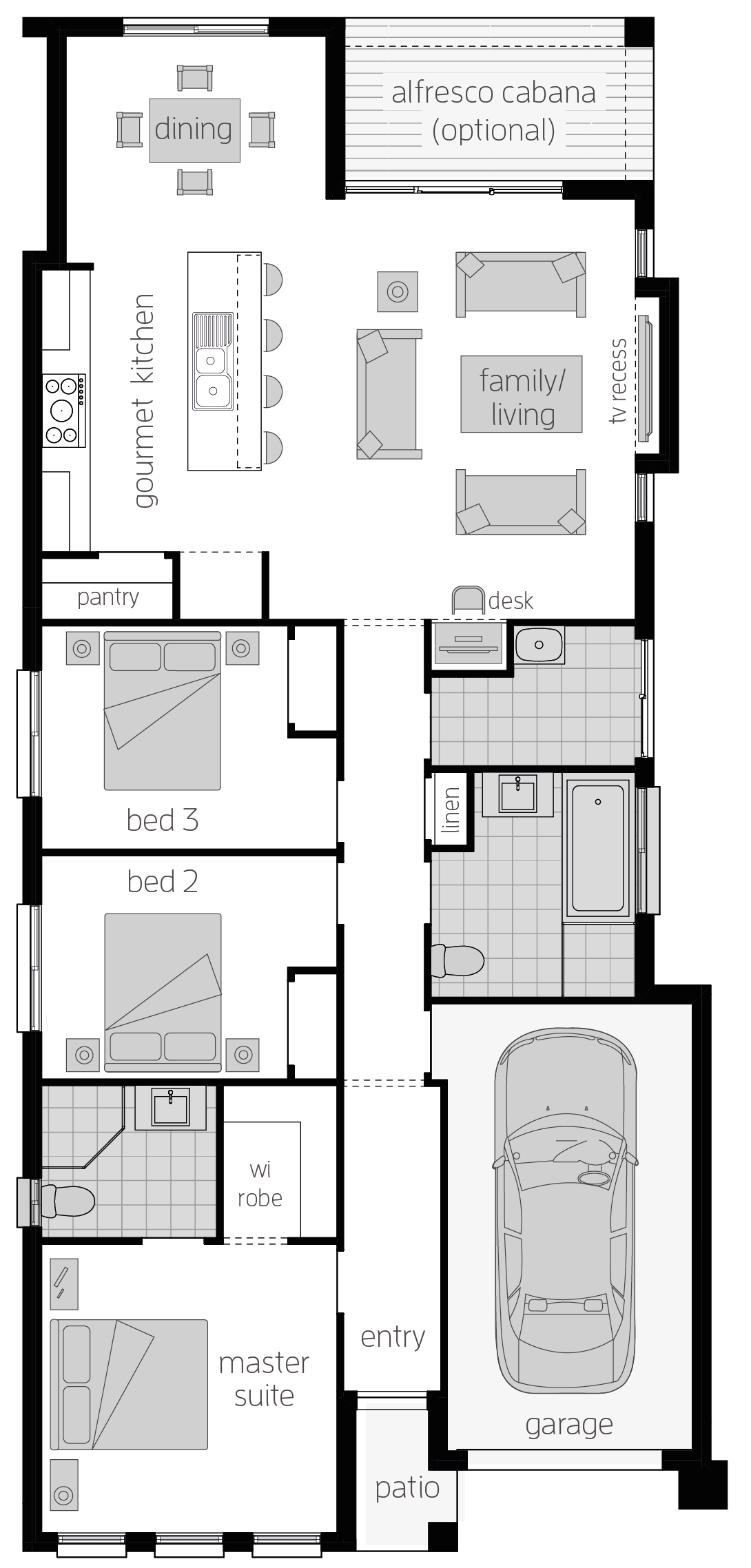

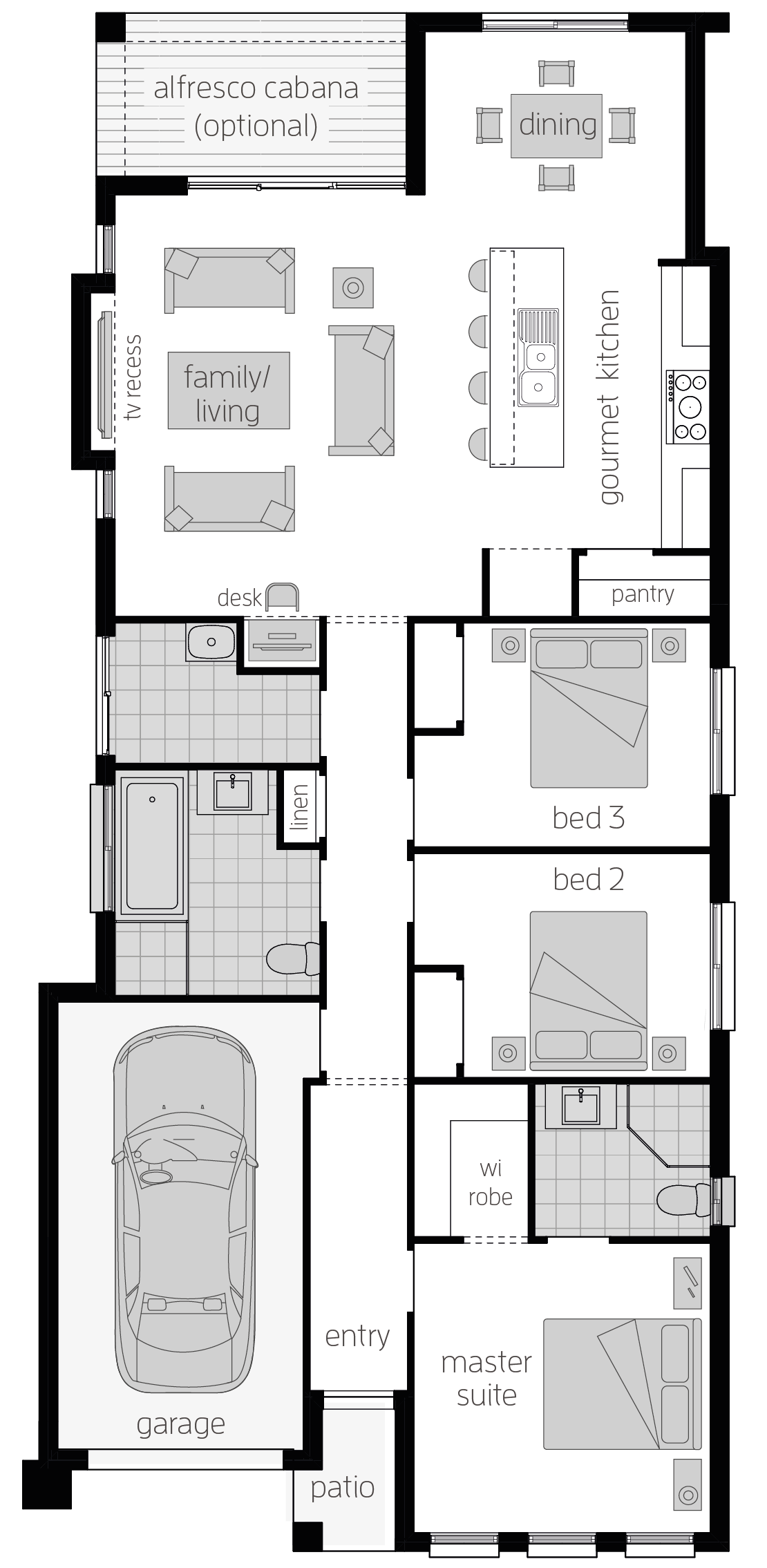

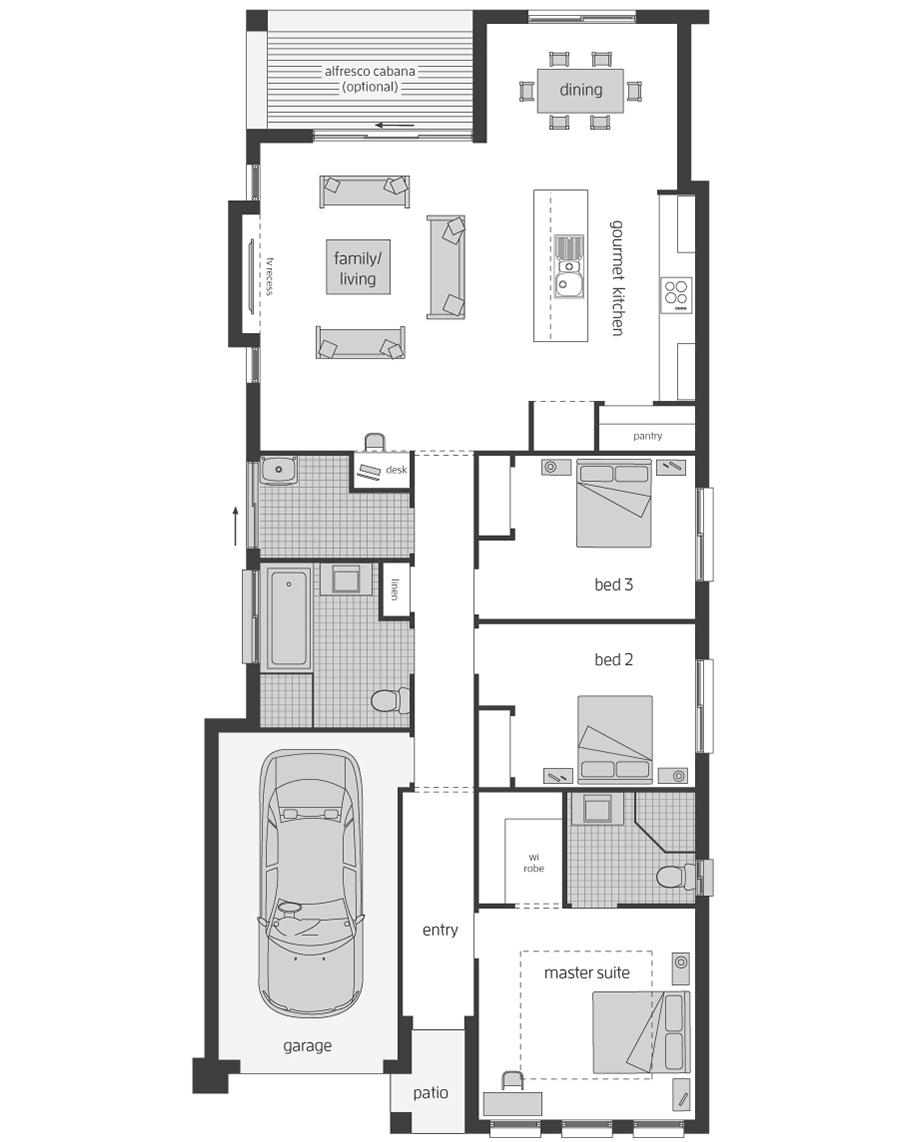

Hamilton Two- Single Storey Floor Plan - McDonald Jones
Hamilton Two- Single Storey Floor Plan - McDonald Jones
Note: Floor plan will differ slightly with application of different facades. Block widths required differ from area to area, are indicative only and subject to council guidelines and developer requirements. Please check with your Building and Design consultant for details in your area. Total (m²) area includes alfresco or alfresco grande. Non-fixed furniture shown on floor plans, including desks in Study and Study Nooks are indicative only and not included.
3
 Bed
2
 Bath
1
 Car
1
 Storey
Block Width
10.00m
 House Width
8.45m
 House Length
18.85m

Room Dimensions

Family/Living
4.6 x 5.2 (m)
Dining
3.2 x 2.7 (m)
Master Suite
3.6 x 3.6 (m)
Bed 2
3.6 x 2.8 (m)
Bed 3
3.6 x 2.8 (m)
Single Garage
3.0 x 5.5 (m)
Alfresco Cabana
3.8 x 2.0 (m)

Additional Features

  • Study Nook
x
Hamilton Two- Single Storey Floor Plan - McDonald Jones
Hamilton Two- Single Storey Floor Plan - McDonald Jones
Show upgrades

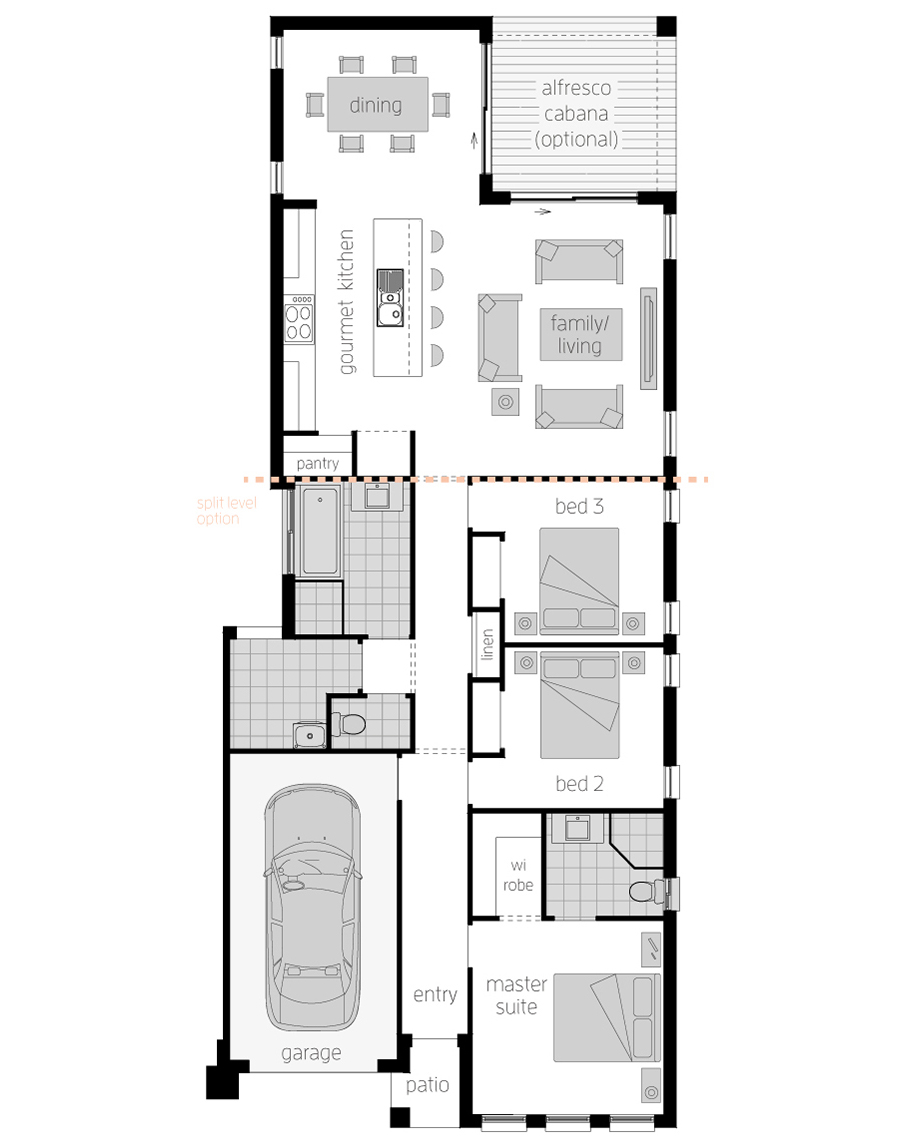

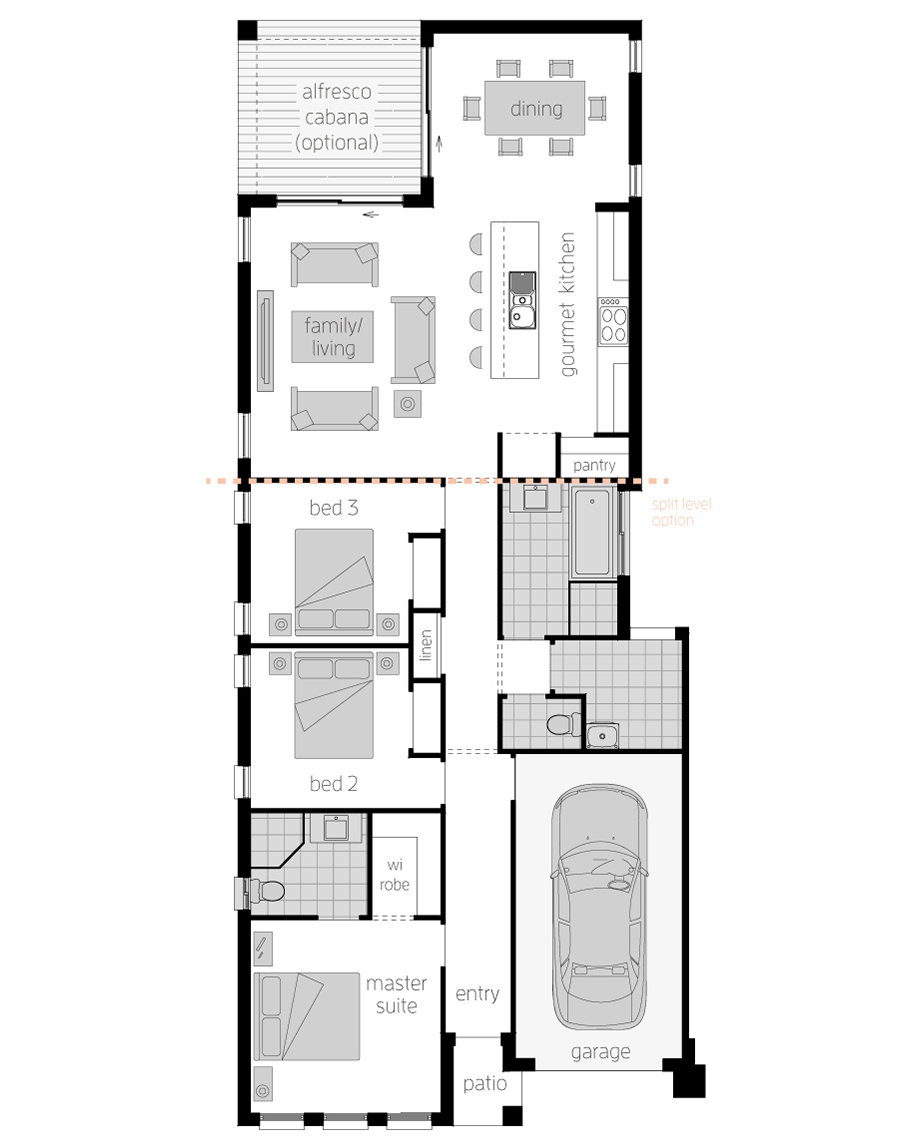

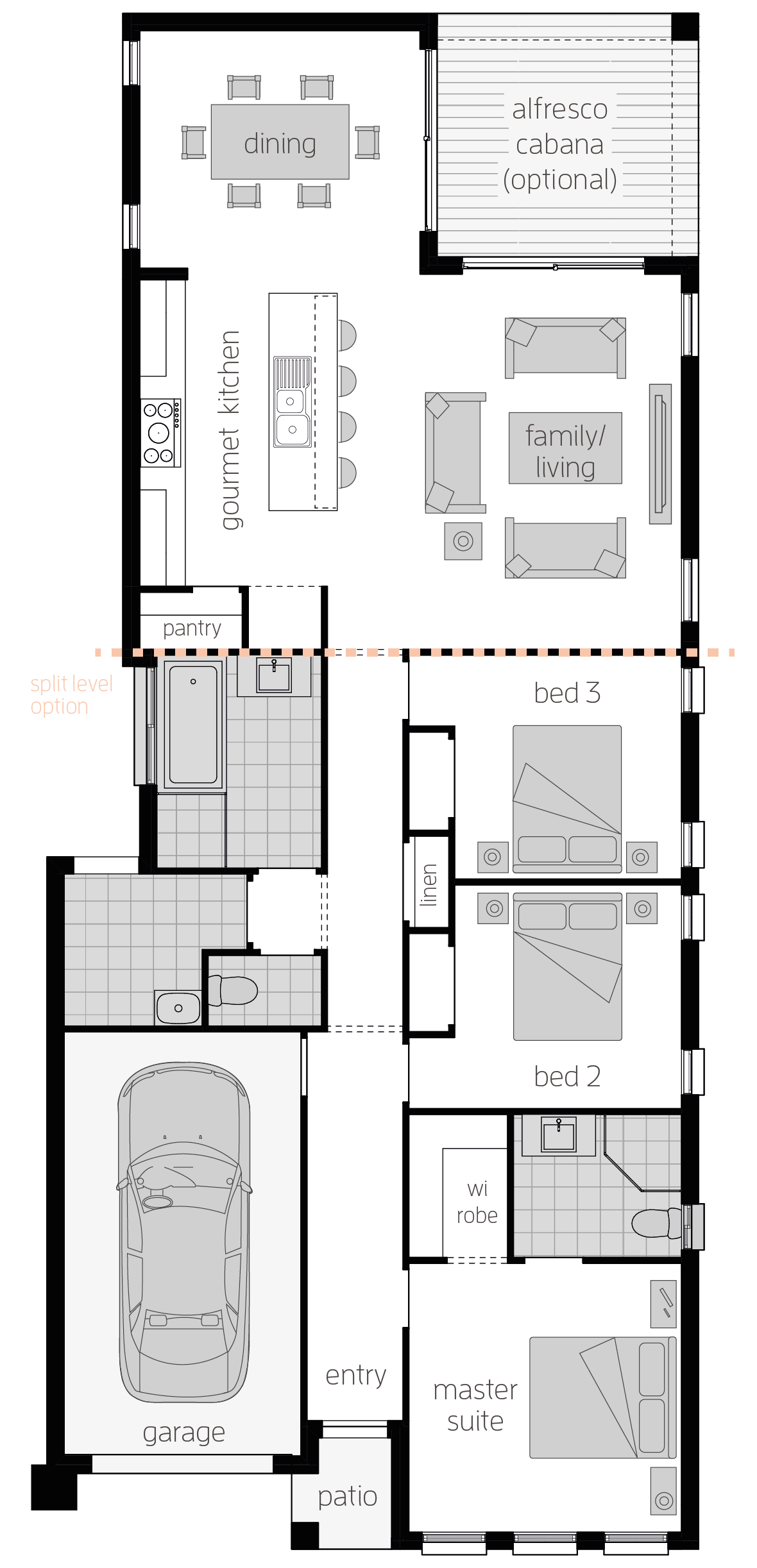

Hamilton Three- Single Storey Floor Plan - McDonald Jones
Hamilton Three- Single Storey Floor Plan - McDonald Jones
Note: Floor plan will differ slightly with application of different facades. Block widths required differ from area to area, are indicative only and subject to council guidelines and developer requirements. Please check with your Building and Design consultant for details in your area. Total (m²) area includes alfresco or alfresco grande. Non-fixed furniture shown on floor plans, including desks in Study and Study Nooks are indicative only and not included.
3
 Bed
2
 Bath
1
 Car
1
 Storey
Block Width
10.00m
 House Width
8.60m
 House Length
20.28m

Room Dimensions

Family/Living
4.7 x 5.0 (m)
Dining
3.7 x 3.1 (m)
Master Suite
3.6 x 3.6 (m)
Bed 2
3.0 x 3.0 (m)
Bed 3
3.0 x 3.0 (m)
Single Garage
3.1 x 5.6 (m)
Alfresco Cabana
3.5 x 3.2 (m)

Additional Features

  • Built-in storage throughout
x
Hamilton Three- Single Storey Floor Plan - McDonald Jones
Hamilton Three- Single Storey Floor Plan - McDonald Jones
Show upgrades

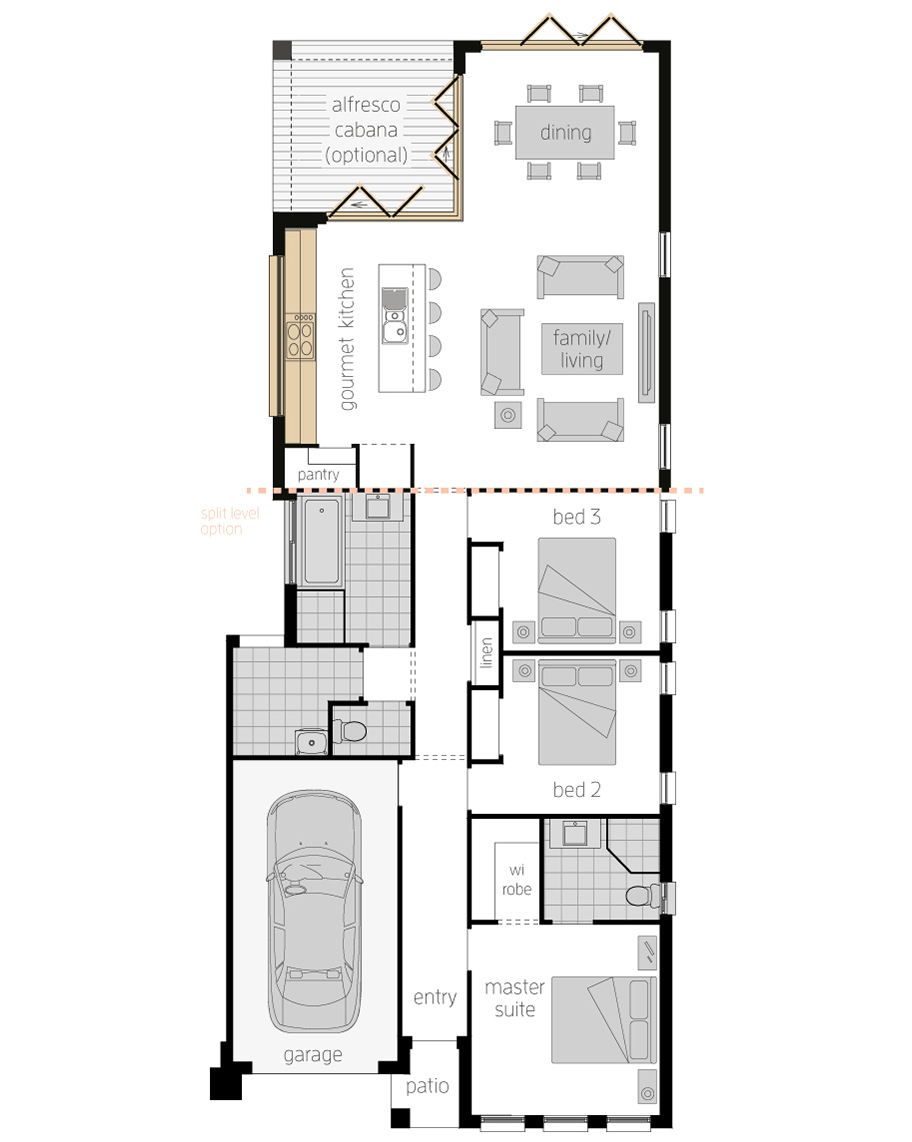

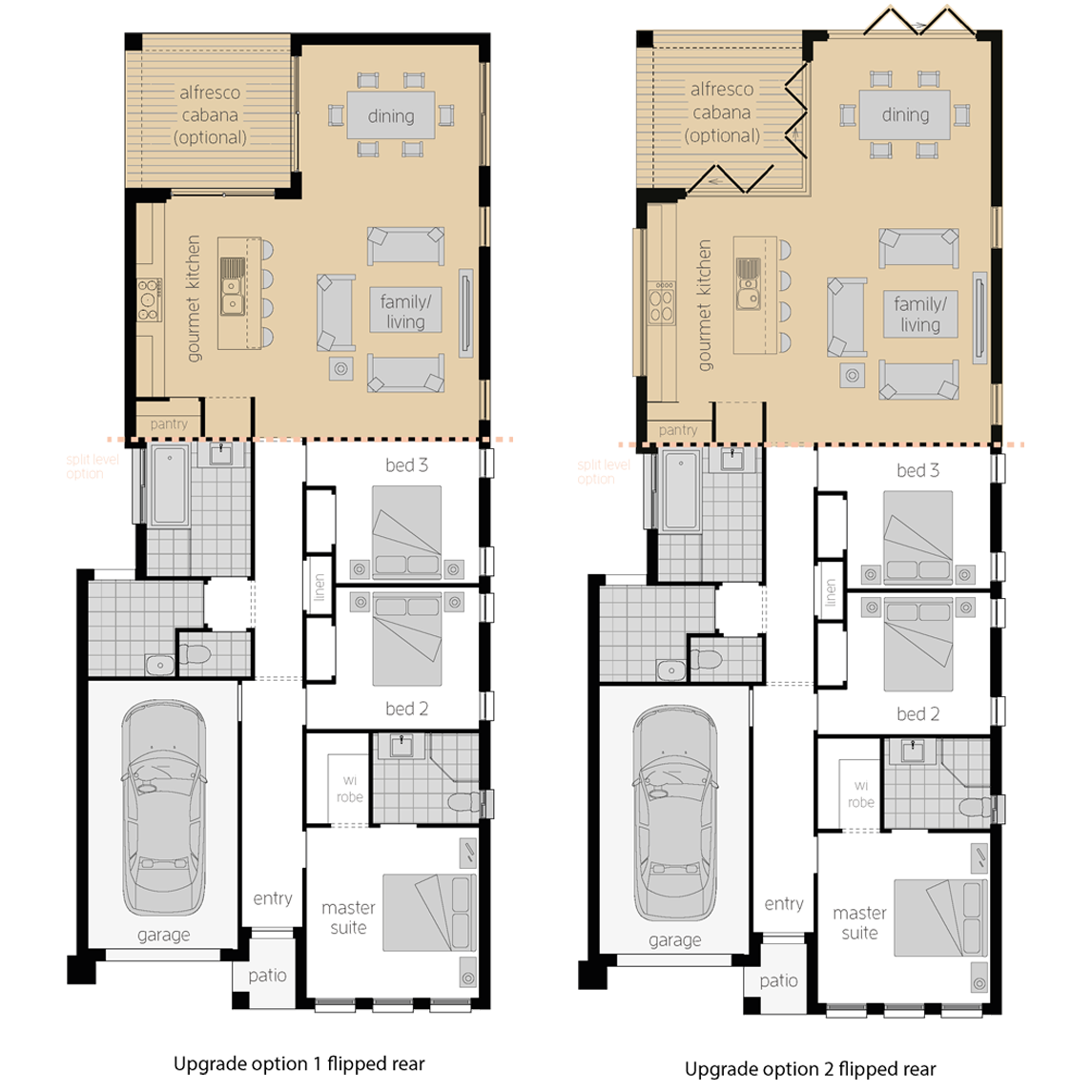

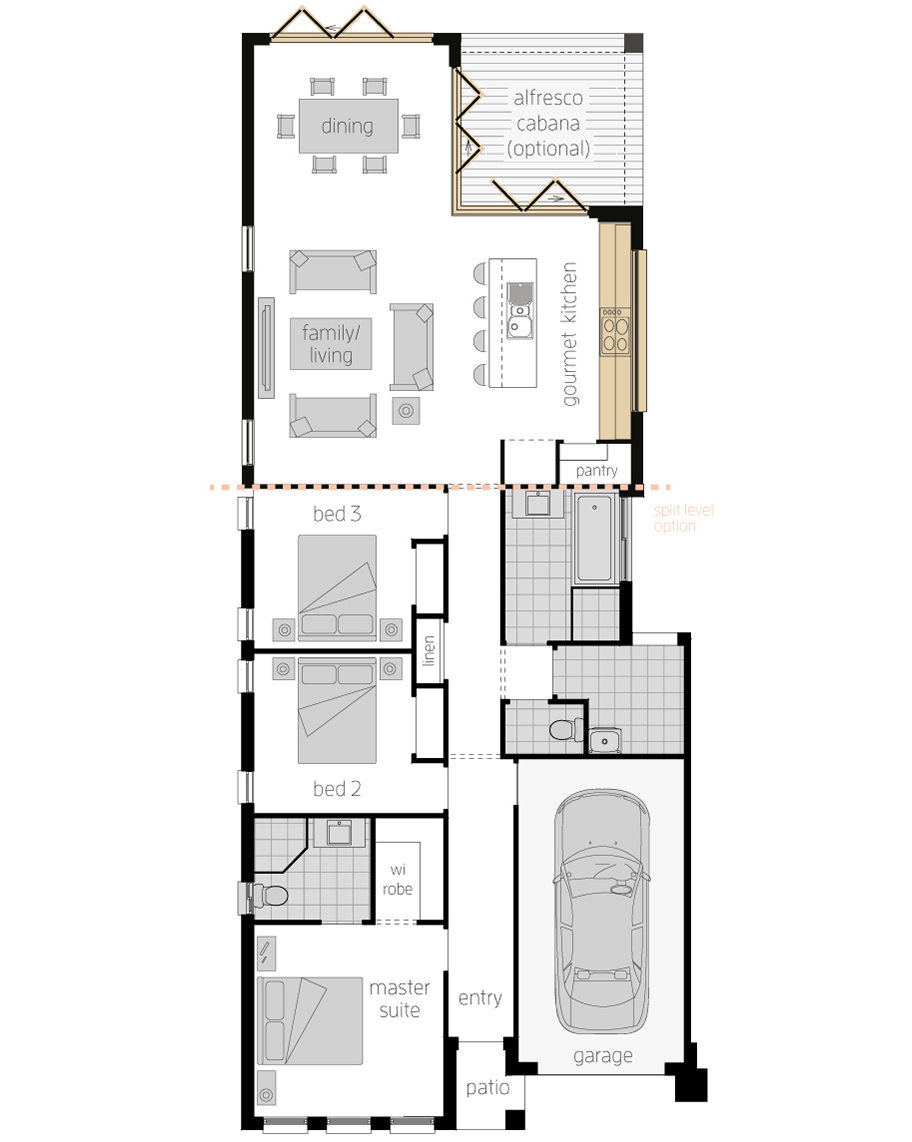

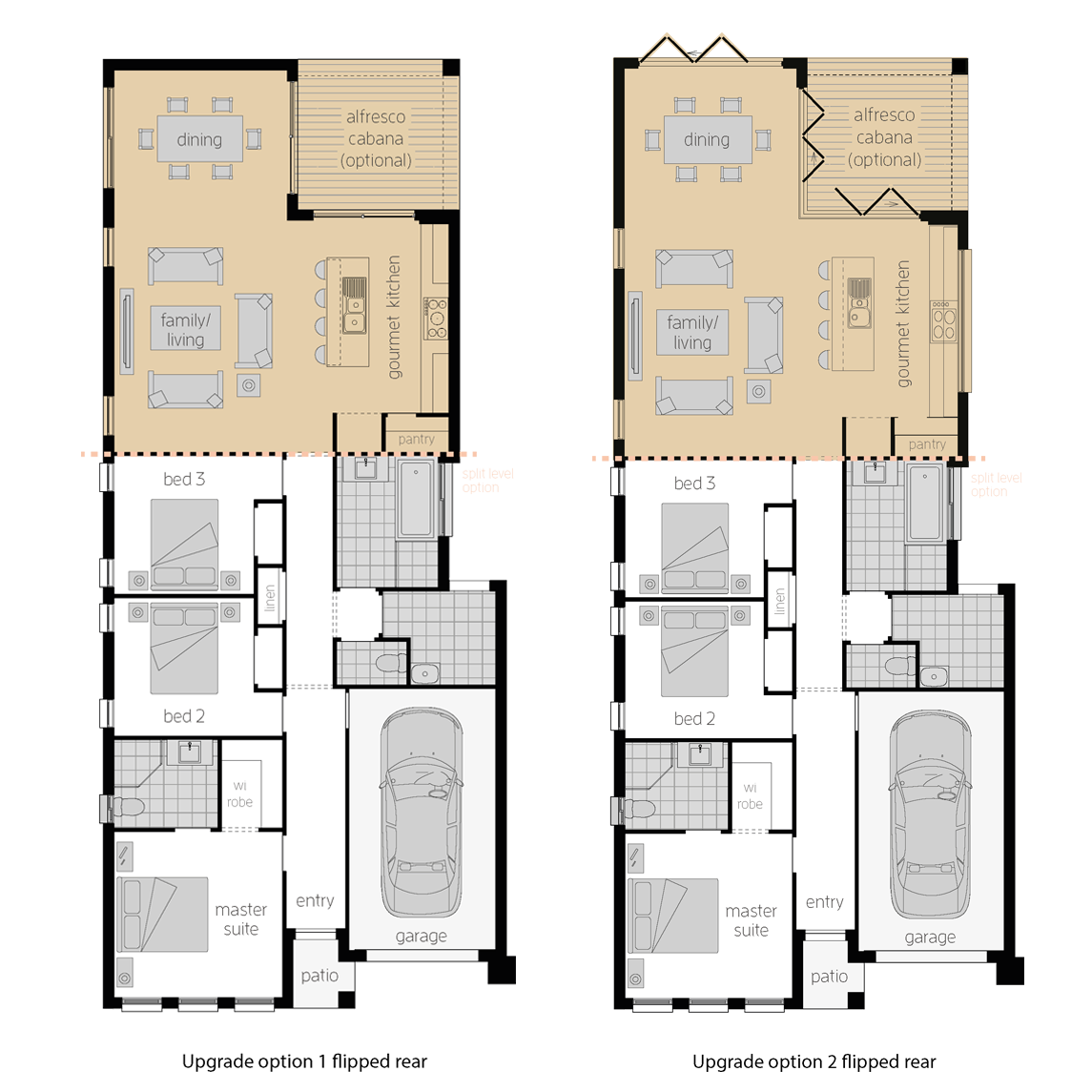

Hamilton Three Upgrades- Single Storey Floor Plan- McDonald Jones
Hamilton Three Upgrades- Single Storey Floor Plan- McDonald Jones
Note: Floor plan will differ slightly with application of different facades. Block widths required differ from area to area, are indicative only and subject to council guidelines and developer requirements. Please check with your Building and Design consultant for details in your area. Total (m²) area includes alfresco or alfresco grande. Non-fixed furniture shown on floor plans, including desks in Study and Study Nooks are indicative only and not included.
3
 Bed
2
 Bath
1
 Car
1
 Storey
Block Width
10.00m
 House Width
8.60m
 House Length
20.28m

Room Dimensions

Family/Living
4.6 x 3.9 (m)
Dining
3.7 x 3.7 (m)
Master Suite
3.6 x 3.6 (m)
Bed 2
3.0 x 3.0 (m)
Bed 3
3.0 x 3.0 (m)
Single Garage
3.1 x 5.6 (m)
Alfresco Cabana
3.3 x 3.0 (m)

Additional Features

  • Built-in storage throughout

Upgrade Options

  • Alfresco Cabana
  • Alternate Kitchen option
  • Bi-fold door to Dining
  • Coffered ceiling to Master Suite
  • Corner bi-fold door to Dining and Kitchen
  • Corner stacker doors to Dining and Kitchen
  • Window splashback to Kitchen
x
Hamilton Three Upgrades- Single Storey Floor Plan- McDonald Jones
Hamilton Three Upgrades- Single Storey Floor Plan- McDonald Jones
Show upgrades

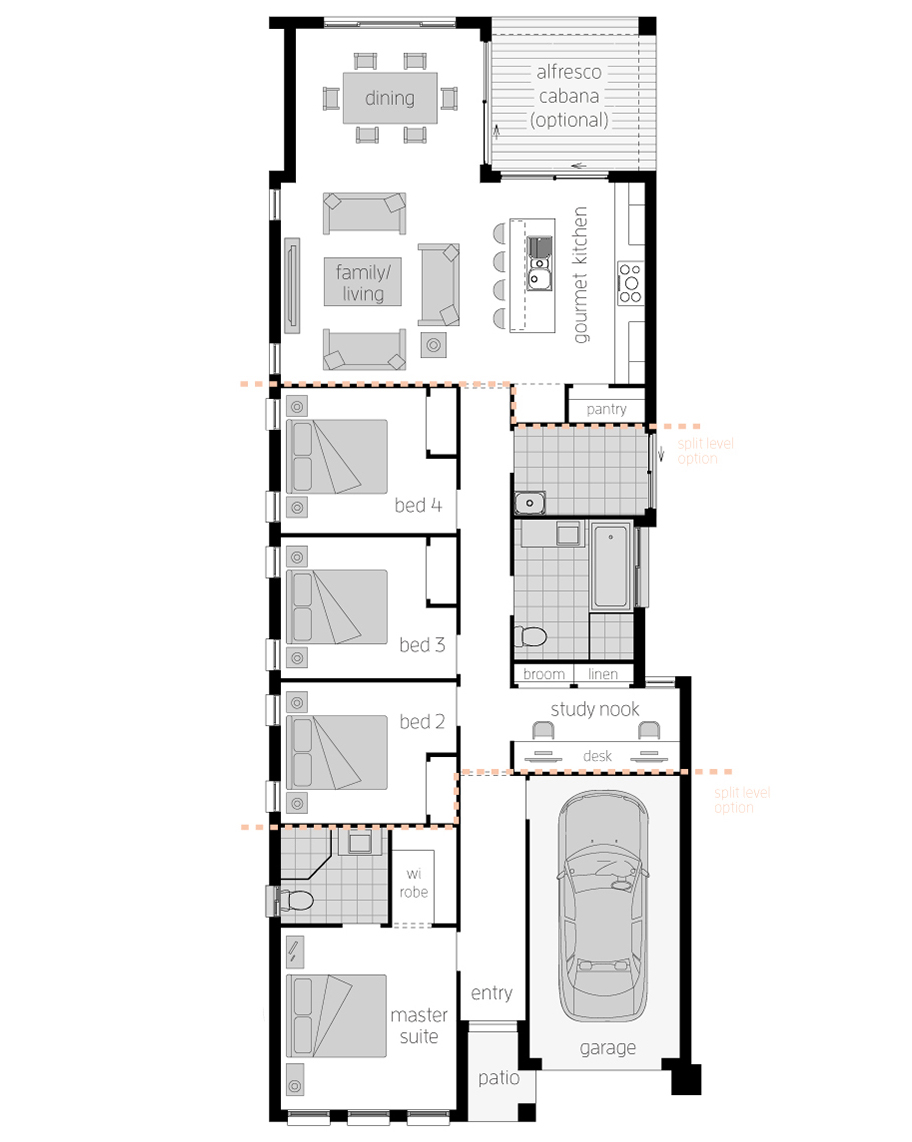

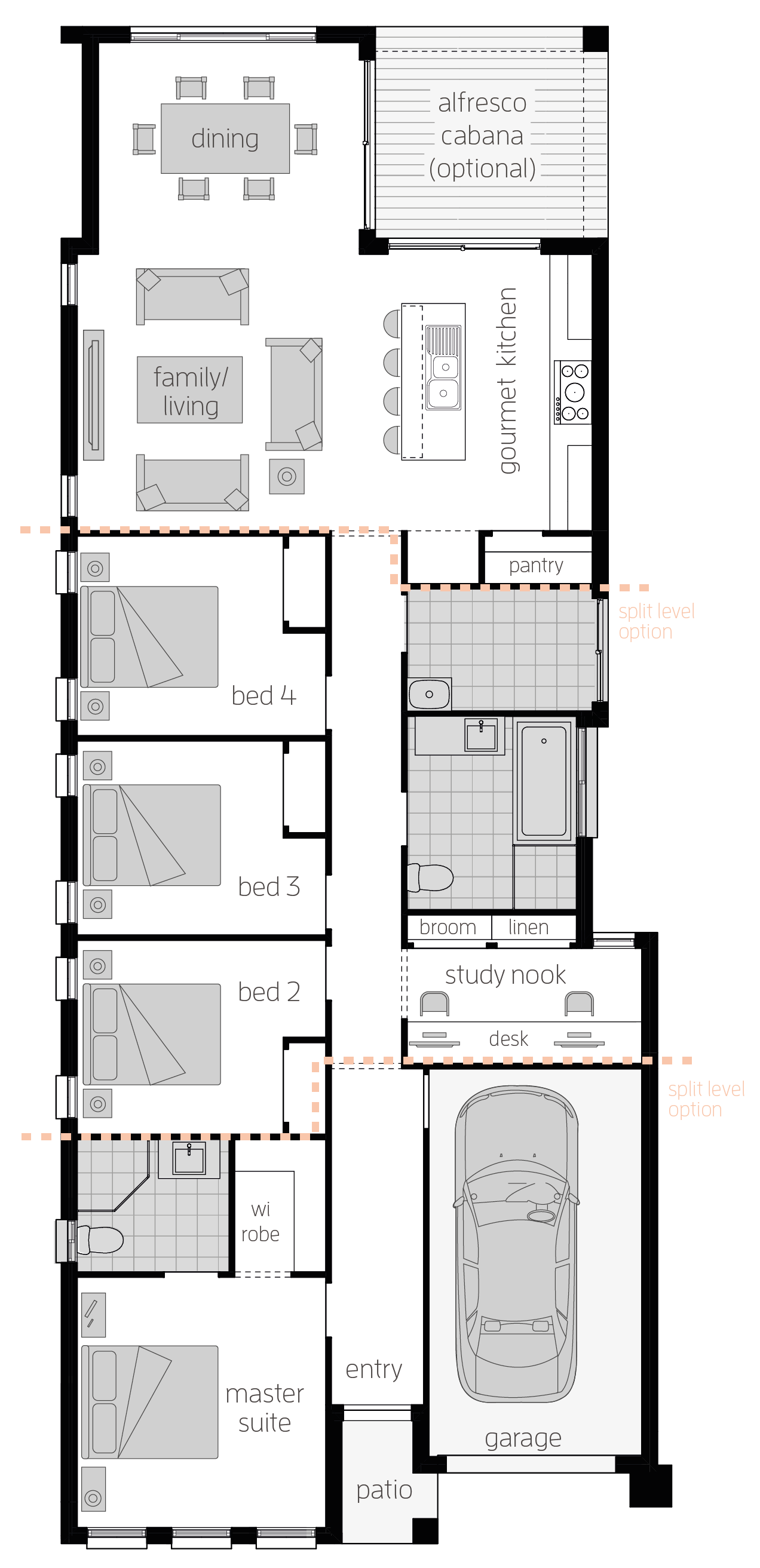

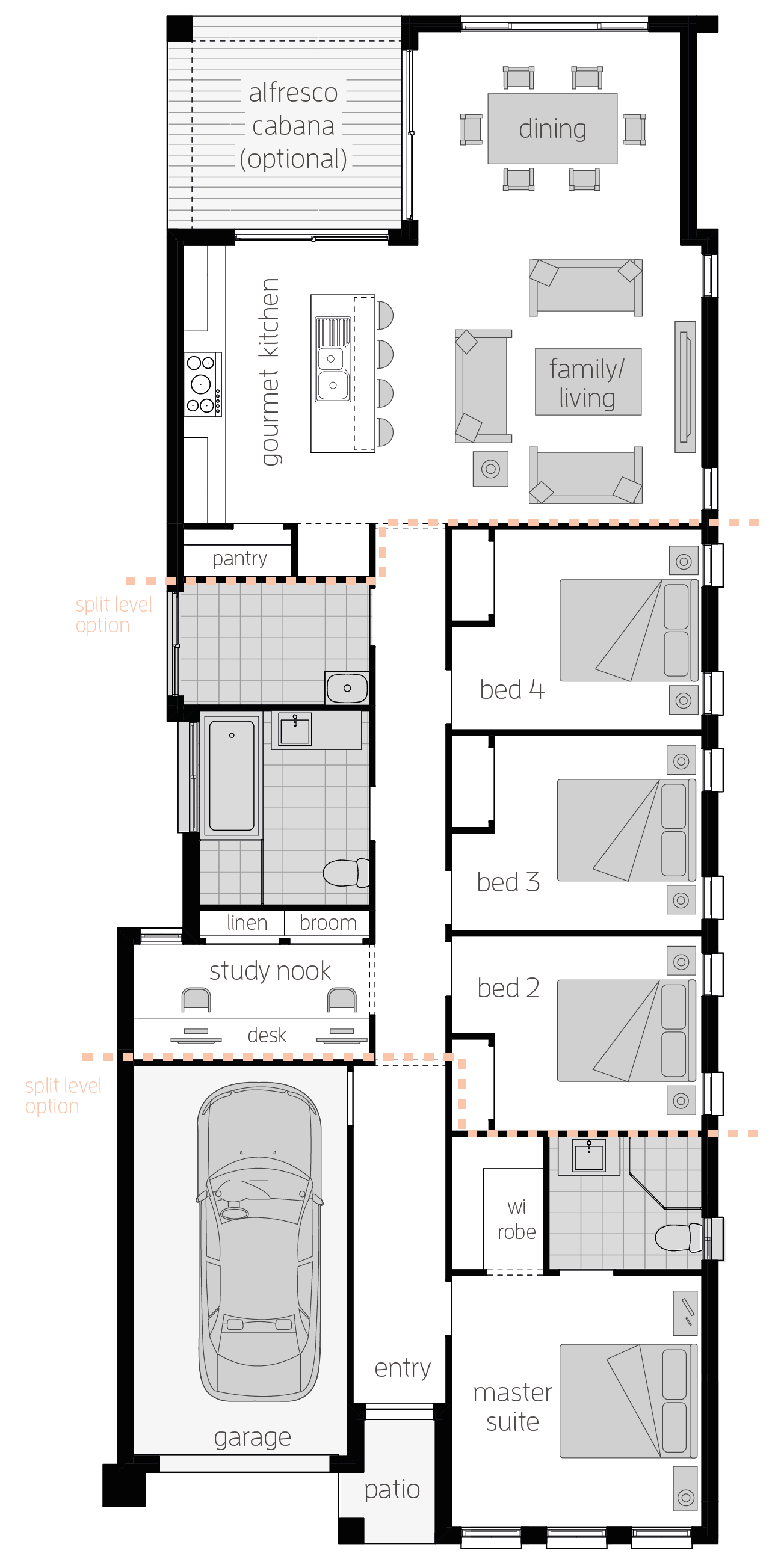

Hamilton Four- Single Storey Floor Plan - McDonald Jones
Hamilton Four- Single Storey Floor Plan - McDonald Jones
Note: Floor plan will differ slightly with application of different facades. Block widths required differ from area to area, are indicative only and subject to council guidelines and developer requirements. Please check with your Building and Design consultant for details in your area. Total (m²) area includes alfresco or alfresco grande. Non-fixed furniture shown on floor plans, including desks in Study and Study Nooks are indicative only and not included.
4
 Bed
2
 Bath
1
 Car
1
 Storey
Block Width
10.00m
 House Width
8.45m
 House Length
21.50m

Room Dimensions

Family/Living
4.6 x 3.9 (m)
Dining
3.7 x 3.0 (m)
Master Suite
3.5 x 3.6 (m)
Bed 2
3.5 x 2.8 (m)
Bed 3
3.5 x 2.8 (m)
Bed 4
3.5 x 2.8 (m)
Study Nook
3.3 x 1.6 (m)
Single Garage
3.0 x 5.5 (m)
Alfresco Cabana
3.3 x 3.0 (m)

Additional Features

  • Study Nook
x
Hamilton Four- Single Storey Floor Plan - McDonald Jones
Hamilton Four- Single Storey Floor Plan - McDonald Jones
Show upgrades

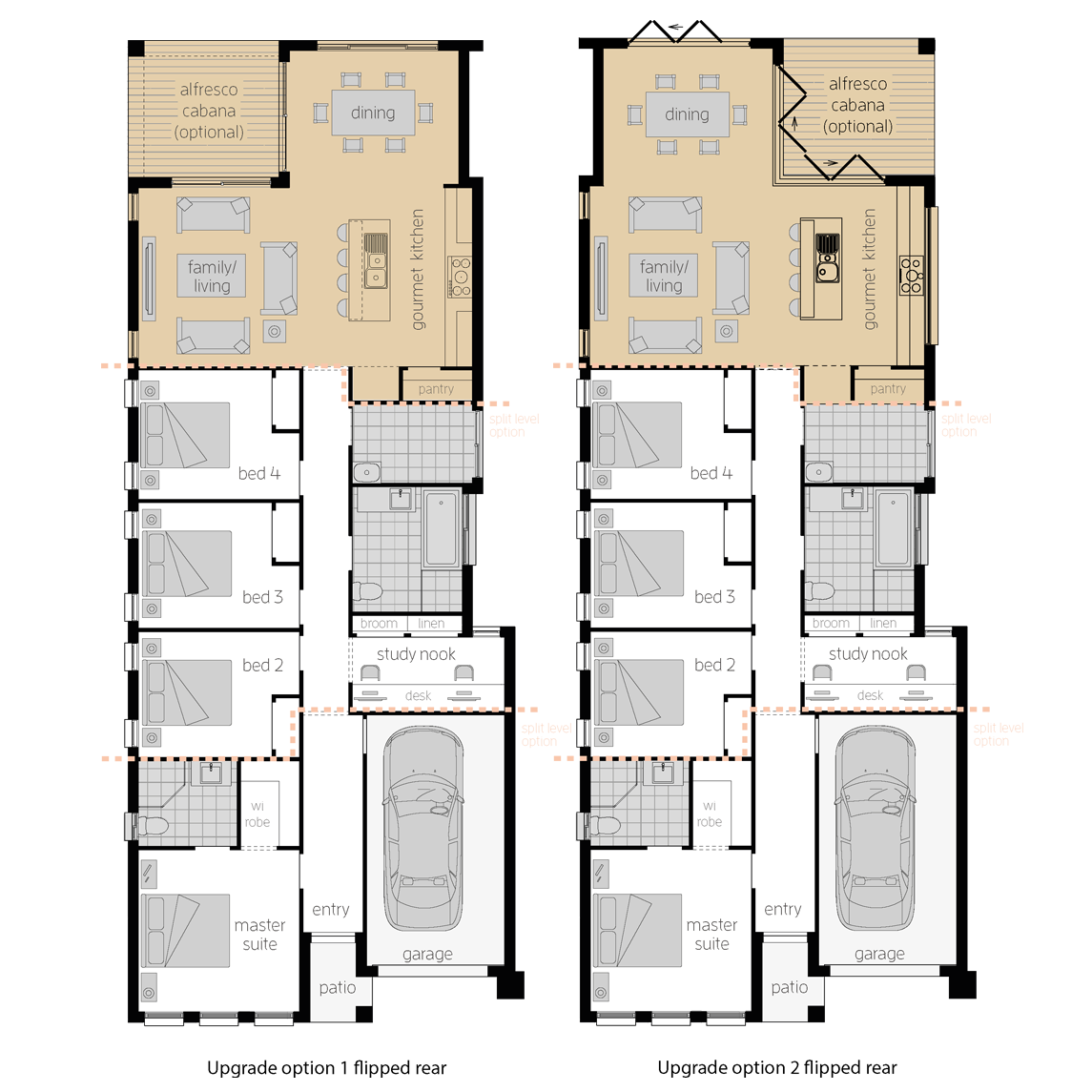

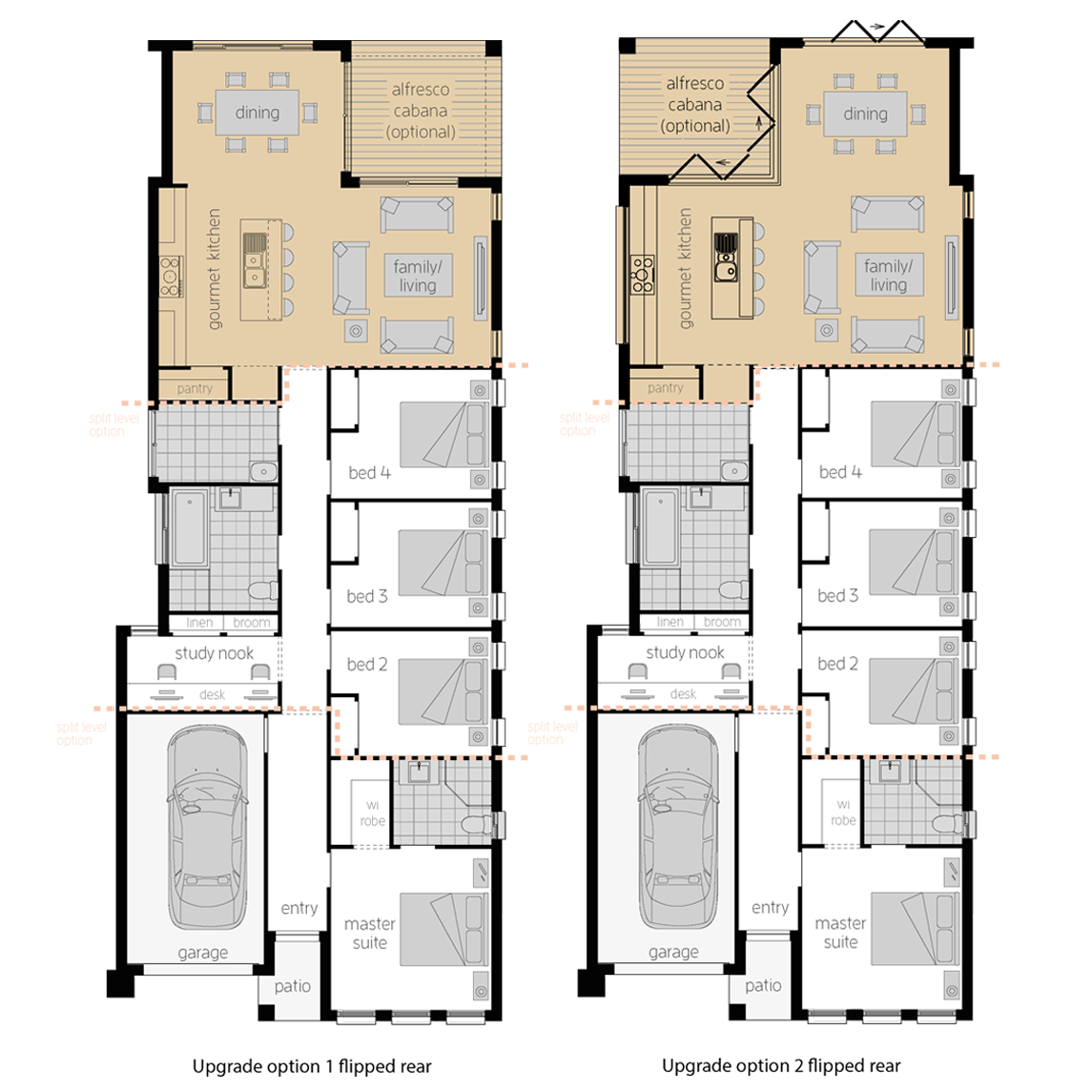

Hamilton Four Upgrades- Single Storey Floor Plan- McDonald Jones
Hamilton Four Upgrades- Single Storey Floor Plan- McDonald Jones
Note: Floor plan will differ slightly with application of different facades. Block widths required differ from area to area, are indicative only and subject to council guidelines and developer requirements. Please check with your Building and Design consultant for details in your area. Total (m²) area includes alfresco or alfresco grande. Non-fixed furniture shown on floor plans, including desks in Study and Study Nooks are indicative only and not included.
4
 Bed
2
 Bath
1
 Car
1
 Storey
Block Width
10.00m
 House Width
8.45m
 House Length
21.50m

Room Dimensions

Family/Living
4.6 x 3.9 (m)
Dining
3.7 x 3.7 (m)
Master Suite
3.5 x 3.6 (m)
Bed 2
3.5 x 2.8 (m)
Bed 3
3.5 x 2.8 (m)
Bed 4
3.5 x 2.8 (m)
Study Nook
3.3 x 1.6 (m)
Single Garage
3.0 x 5.5 (m)
Alfresco Cabana
3.3 x 3.0 (m)

Upgrade Options

  • Alfresco Cabana
  • Alternate Kitchen option
  • Bi-fold door to Dining
  • Coffered ceiling to Master Suite
  • Corner bi-fold door to Dining and Kitchen
  • Corner stacker doors to Dining and Kitchen
  • Window splashback to Kitchen
x
Hamilton Four Upgrades- Single Storey Floor Plan- McDonald Jones
Hamilton Four Upgrades- Single Storey Floor Plan- McDonald Jones
Show upgrades

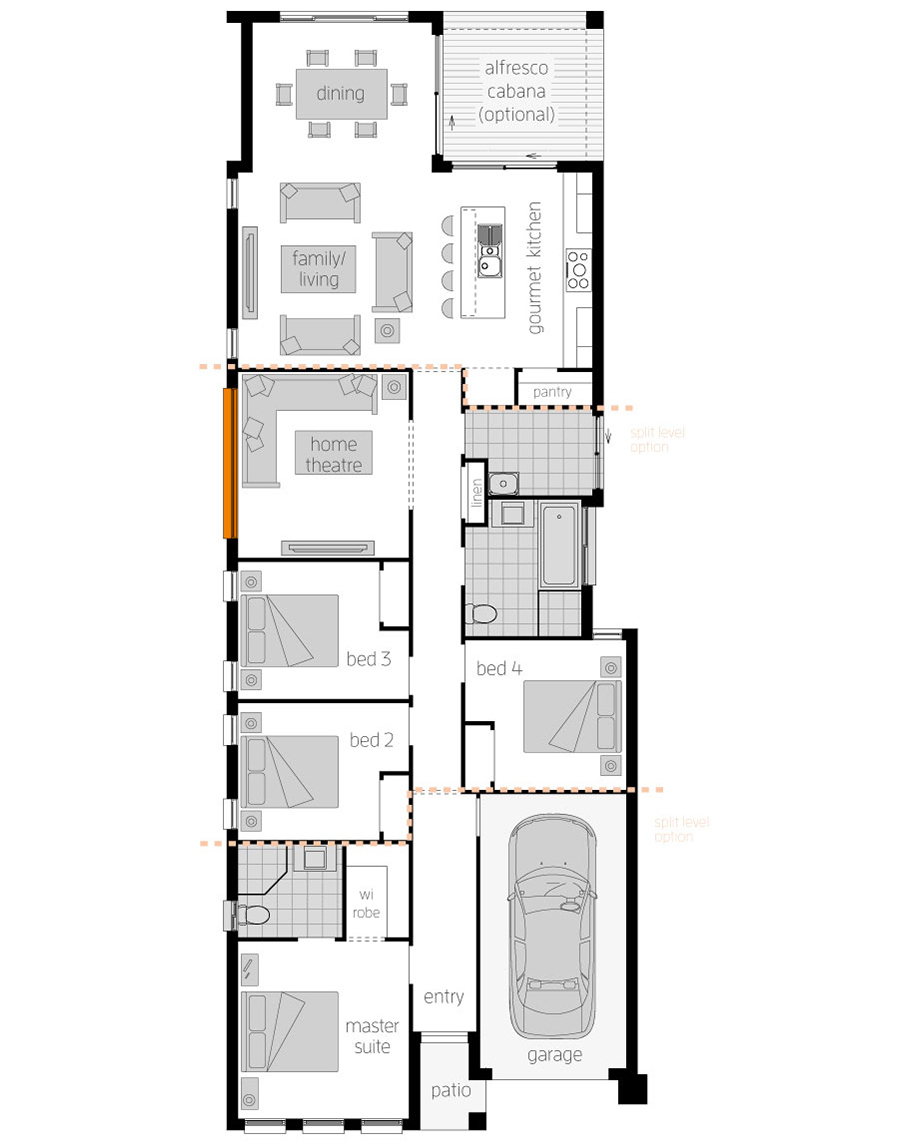

Hamilton Five- Single Storey Floor Plan - McDonald Jones
Hamilton Five- Single Storey Floor Plan - McDonald Jones
Note: Floor plan will differ slightly with application of different facades. Block widths required differ from area to area, are indicative only and subject to council guidelines and developer requirements. Please check with your Building and Design consultant for details in your area. Total (m²) area includes alfresco or alfresco grande. Non-fixed furniture shown on floor plans, including desks in Study and Study Nooks are indicative only and not included.
4
 Bed
2
 Bath
1
 Car
1
 Storey
Block Width
10.00m
 House Width
8.45m
 House Length
22.50m

Room Dimensions

Family/Living
4.5 x 3.9 (m)
Dining
3.8 x 3.1 (m)
Master Suite
3.5 x 3.6 (m)
Bed 2
3.5 x 2.8 (m)
Bed 3
3.5 x 2.8 (m)
Bed 4
3.4 x 3.0 (m)
Home Theatre
3.5 x 3.8 (m)
Single Garage
3.0 x 5.5 (m)
Alfresco Cabana
3.1 x 3.1 (m)

Additional Features

  • Home Theatre
x
Hamilton Five- Single Storey Floor Plan - McDonald Jones
Hamilton Five- Single Storey Floor Plan - McDonald Jones
Show upgrades
Hamilton Five Upgrades- Single Storey Floor Plan- McDonald Jones
Hamilton Five Upgrades- Single Storey Floor Plan- McDonald Jones
Note: Floor plan will differ slightly with application of different facades. Block widths required differ from area to area, are indicative only and subject to council guidelines and developer requirements. Please check with your Building and Design consultant for details in your area. Total (m²) area includes alfresco or alfresco grande. Non-fixed furniture shown on floor plans, including desks in Study and Study Nooks are indicative only and not included.
3
 Bed
2
 Bath
1
 Car
1
 Storey
Block Width
10.00m
 House Width
8.45m
 House Length
22.50m

Room Dimensions

Family/Living
4.5 x 3.9 (m)
Dining
3.8 x 3.1 (m)
Master Suite
3.5 x 3.6 (m)
Bed 2
3.5 x 2.8 (m)
Bed 3
3.5 x 2.8 (m)
Bed 4
3.4 x 3.0 (m)
Home Theatre
3.5 x 3.8 (m)
Single Garage
3.0 x 5.5 (m)
Alfresco Cabana
3.1 x 3.1 (m)

Upgrade Options

  • Alfresco Cabana
  • Alternate Kitchen option
  • Bi-fold door to Dining
  • Coffered ceiling to Master Suite
  • Corner bi-fold door to Dining and Kitchen
  • Corner stacker doors to Dining and Kitchen
  • Window splashback to Kitchen
x
Hamilton Five Upgrades- Single Storey Floor Plan- McDonald Jones
Hamilton Five Upgrades- Single Storey Floor Plan- McDonald Jones

Images

Images Facades

Enquiry

Please complete the enquiry form and someone from our team will be in contact within 24 hours.

Alternatively you can give a building and design consultant a call on 1300 555 382 or see more contact details on the contact us page.

* Note: If you're enquiring about Granny Flats, they are not offered as a stand-alone build, they are constructed at the same time as your main residence.

Virtual Tour

You can also check this virtual tour in your phone using the Visualise app
Download the app:

Inclusions

Kitchen
Internal
Bathroom
External
European designed gourmet kitchen with laminated bench tops - select from a wide range of colours.
Dishwasher opening with connections.
Microwave shelf with power point.
Enlarged pantry with white ventilated shelving.
Fridge area for 1.0 wide fridge freezer unit.
Radiant R1.75 MK11 stainless steel sink.
Full height ceramic tiling to kitchen bench splash back.
Choice of quality Venini cooking appliances: Cooktop - VGF60 stainless steel gas/GECE6004/electric, Oven – VO5S stainless steel fanforced oven, Rangehood – AAS9SE3 900mm stainless steel canopy.
Tapeware: Posh Bristol MkII Mixer Tap.
Insulation - R3.0 insulation to ceilings & R2.0 to external walls excluding garage.
Ceilings - 2416mm nominal ceiling height.
Cornice - 75mm cove cornice.
Paint - Taubmans ‘Endure’ to all internal walls -2 coat system. Flat acrylic to ceiling. Gloss enamel to interior timber & internal/external doors.
Electrical – As per the standard electrical plan.
Smoke Detectors - As per the standard electrical plan wired direct to mains power.
Doors - Flush Panel doors, Cushioned door stops, Glass sliding doors with key locks.
Door Furniture - Gainsborough 300 Contractor Series.
Robes where shown with white ventilated shelving.
Tapware - Laundry: Base MK2 Mixer Tap.
Clarke Eureka Plus laundry tub.
Large selection of ceramic tiles.
1800mm high semi framed shower screens with clear toughened glass and pivot door.
Gen X showerhead.
Framed mirror above vanity.
Mizu Drift towel rail or rings (where applicable).
Mizu Drift toilet roll holder.
Stylus Basis rectangular bath.
Stylus Symphony linked toilet suite.
Tapware - Bathroom/Ensuite: GenX Cross Handle tapware.
Facade - As per Artist’s impression in face bricks & concrete tiles.
Windows - Architectural styled aluminium windows as per facade selected. Energy efficient weather seals and locks to all windows.
Bricks - Choose from an extensive range of bricks from our manufacturer Austral (Everyday Life and Old Colonial),.
Roof Tiles - Concrete roof tiles from Bristile (Classic range). This will create hundreds of no charge combinations.
Hot Water - Rheem Stellar 160lt, 5 star storage gas hot water system.
Doors - Front door: standard selection from Hume Doors (Vaucluse), Laundry door: XF3 with half glazed panel or glass sliding door (Design Specific).
Door Furniture - Front entry: Gainsborough Governor, Laundry: Gainsborough Governor.
Garage Door - Sectional overhead garage door.
Concrete Floor - Engineer designed to M classification, Cover Grade concrete finish to Patio’s and Alfresco’s (where applicable).
Reticulated chemical pest protection.
Timber frame/22.5° pitch roof trusses (based on wind rating NW2 33N).
42mm half splayed architraves and mouldings.
180 day fixed price tender.
Tap - External: Front and rear.
Ooze sophistication and decadence

Luxury Upgrades

McDonald Jones are proud to announce our new luxury upgrade packages. If you want your dream home to ooze sophistication and decadence, these affordable upgrade packages are for you. With Fisher & Paykel appliances, stone benchtops, ducted Actron Air conditioning, increased ceiling heights, steel frame, colorbond roof and much more. This package is in a class of its own.

Read More
100% termite-proof frames and trusses

The Strength of Steel

Don't risk your biggest investment! Build with the single and double storey steel frame experts - McDonald Jones, Supaloc and TrueCore. Our Supaloc steel frames and trusses incorporating TrueCore steel come with a 50-year structural warranty* and are 100% termite-proof.

Read More

Similar Home Designs

Valencia Facade - Chelsea Home Design - McDonald Jones

Chelsea

2 Variations
4 2 2 12.99 1
Country Classic Facade - Sierra - McDonald Jones

Sierra

1 Variations
4 2 2 11.17 1
Executive Facade - Manhattan Two - McDonald Jones

Manhattan

2 Variations
4 2 2 12.37 1

Related Blog Posts

See all
Living - Edenvale Two Storey Home Design - McDonald Jones

Last chance to walk through Gregory Hills!

We are sad to say goodbye to our 3 beautiful displays; don’t miss your chance to experience these designs and your last chance to purchase the Sussex home design.
by
Ciara
 30/04/2018
Alfresco - Edenvale Two Storey Home Design - McDonald Jones

New Year, New Display Homes!

At McDonald Jones Homes, we consistently find ways to create affordable living options that meet the diverse needs of contemporary families in Australia. Over the next 12 months we will be opening a new range of stunning display homes along Australia’s east coast that showcase how great design can enrich life today and long into the future.
by
Ciara
 19/01/2018
Havana - UWS Campbeltown

Top 3 designs in 2015 as chosen by you

With so many architecturally designed homes to choose from and many floor plan options for each design to select, we thought you’d love to know the three top designs that you, our customers, have chosen to build in 2015. With the clever Hamilton design (perfect for smaller lots and first home buyers), the grande and spacious Bronte acreage home, the popular Milano and multi award winning Monte Carlo coming in just behind, these are the three top picks for 2015. Drum roll please!
by
Alyssa
 21/12/2015
See all
GenOne Brochure Hamilton

Be inspired by each turn of the page

Exploring all of our home designs is even easier with our range of digital brochures. Open the book and the door to your new home!

View the GenOne Collection Brochure
