A Place For Everyone

A selection of thoughtfully-placed living spaces ensure everyone has a place to enjoy in this well-zoned home.

Exception family living - Progressive design, consideration of contemporary lifestyles and imaginative solutions come together in the Castleton to create a home that makes family living a pleasure – every day of the week.

Entertaining? Or quiet night in? - The Castleton is your escape – your family’s sanctuary away from the world. Friends coming over? The light-filled Living zone at the rear of the home offers an expansive Living/Dining space flowing freely out to the optional Alfresco Cabana that’s just made for nights with friends and family. Taking it slowly? Your Home Theatre offers a serene retreat for family movie nights away from the buzz of it all.

Time to get away - When it’s time to turn in for the night and retreat upstairs, a cosy haven awaits. Walk up the stairs and leave the cares of the day behind you as you luxuriate in the privacy of the stunning Master Suite complete with resort-style Ensuite and Walk-In Robe.

Kids’ zone - The kids will be just as happy with their space away from the world. A Children’s Activity room, Study Nook, family Bathroom and three Bedrooms complete the kids’ zone, giving them plenty of space and privacy to enjoy.

Floor Plans

Castleton 34
Show upgrades
Architectural New Home Designs - Castleton 34 Floor Plans
Architectural New Home Designs - Castleton 34 House Plans
Note: Floor plan will differ slightly with application of different facades. Block widths required differ from area to area, are indicative only and subject to council guidelines and developer requirements. Please check with your Building and Design consultant for details in your area. Total (m²) area includes alfresco or alfresco grande. Non-fixed furniture shown on floor plans, including desks in Study and Study Nooks are indicative only and not included.
4
 Bed
2.5
 Bath
2
 Car
2
 Storey
Block Width
14.00m
 House Width
12.05m
 House Length
18.20m

Room Dimensions

Family/Living
5.0 x 6.5 (m)
Dining
4.0 x 4.5 (m)
Master Suite
4.2 x 3.9 (m)
Bed 2
3.3 x 3.1 (m)
Bed 3
4.6 x 3.0 (m)
Bed 4
3.5 x 3.6 (m)
Home Theatre
4.1 x 4.7 (m)
Children’s Activity
5.2 x 4.6 (m)
Double Garage
5.6 x 5.8 (m)
Alfresco Cabana
4.2 x 3.5 (m)

Additional Features

  • Home Theatre
  • Children's Activity
  • Study Nook
  • Powder Room
x
Castleton 34- Two Storey Floor Plan- McDonald Jones
Castleton 34- Two Storey Floor Plan- McDonald Jones
Show upgrades

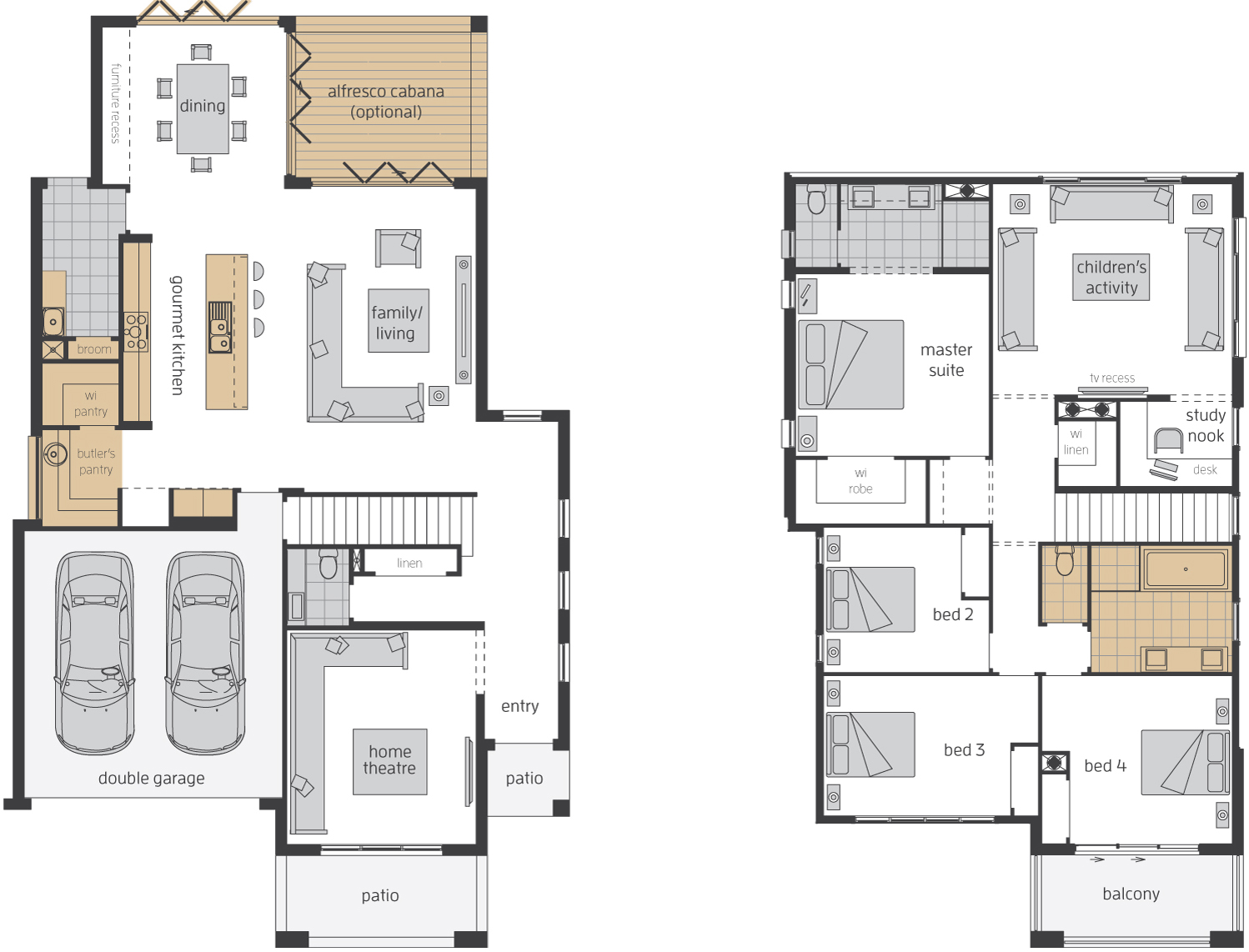

Castleton 34- Two Storey Upgrade Floor Plan- McDonald Jones
Castleton 34- Two Storey Upgrade Floor Plan- McDonald Jones
Note: Floor plan will differ slightly with application of different facades. Block widths required differ from area to area, are indicative only and subject to council guidelines and developer requirements. Please check with your Building and Design consultant for details in your area. Total (m²) area includes alfresco or alfresco grande. Non-fixed furniture shown on floor plans, including desks in Study and Study Nooks are indicative only and not included.
4
 Bed
2.5
 Bath
2
 Car
2
 Storey
Block Width
14.00m
 House Width
12.05m
 House Length
18.20m

Room Dimensions

Family/Living
5.0 x 6.5 (m)
Dining
4.0 x 4.5 (m)
Master Suite
4.2 x 3.9 (m)
Bed 2
3.6 x 3.1 (m)
Bed 3
4.6 x 3.0 (m)
Bed 4
3.5 x 3.6 (m)
Home Theatre
4.1 x 4.7 (m)
Children’s Activity
5.2 x 4.6 (m)
Double Garage
5.6 x 5.8 (m)
Alfresco Cabana
4.2 x 3.5 (m)

Additional Features

  • Home Theatre
  • Children's Activity
  • Study Nook
  • Butler's Pantry
  • Powder Room

Upgrade Options

Ground Floor

  • Alfresco Cabana 4.2m x 3.5m
  • Alternate Kitchen layout with two appliance towers
  • Bi-fold door to Dining and Family/Living
  • Butler’s Pantry
  • Laundry bench with overhead cupboard
  • Splashback window to Butler’s Pantry

First Floor

  • Alternate Bathroom layout
x

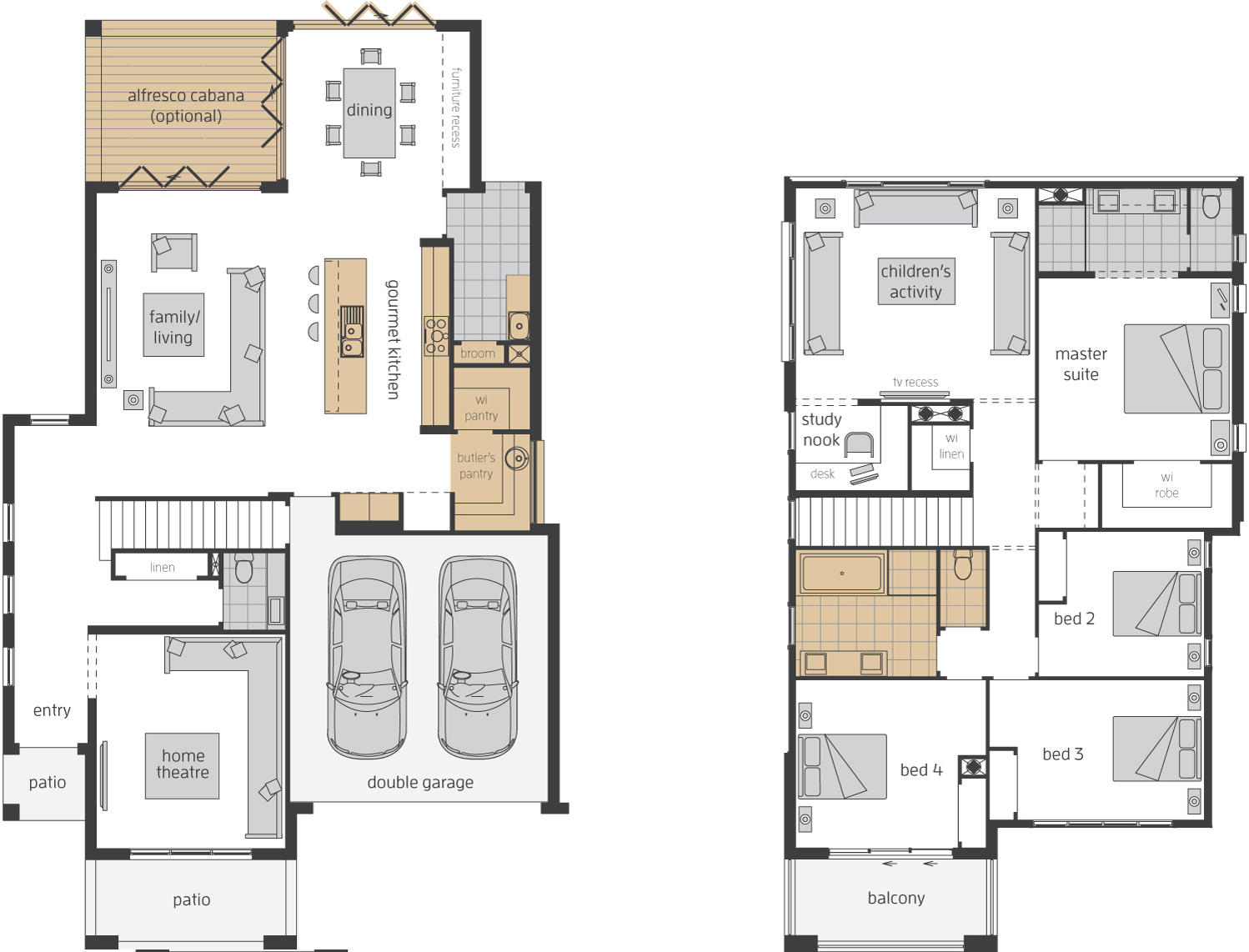

Castleton 34- Two Storey Upgrade Floor Plan- McDonald Jones
Castleton 34- Two Storey Upgrade Floor Plan- McDonald Jones

Images

Images Facades
Note: Images of facades shown are a guide only. Material finishes, dimensions and colours shown are purely an expression of the artist and subject to change depending on availability and design updates. Please refer to our current price list and specifications for façade finishes allowed in published price.

Enquiry



Enquire about your favourite home design today or give a building and design consultant a call on 1300 555 382.

* Note: If you're enquiring about Granny Flats, they are not offered as a stand-alone build, they are constructed at the same time as your main residence.

Virtual Tours

Inclusions

Kitchen
Internal
Bathroom
External
European designed gourmet laminated kitchen with attractive laminated bench tops.
Tapware - Posh Bristol MkII Mixer Tap.
Dishwasher opening with connections.
Microwave shelf with power point.
Large pantry with ventilated shelving.
Fridge area for 1.0 wide fridge freezer unit.
Full height ceramic tiling to Kitchen bench splash back.
Choice of quality Omega cooking appliances: Cooktop - Gas Omega OG60XA (stainless steel)/Electric Omega OC64KZ, Oven – OO651XR (stainless steel), Rangehood – Recirculating ORW9XA stainless steel canopy.
Insulation - R3.0 insulation to first floor ceilings and R2.0 to external walls excluding garage (excludes insulation between ground floor and first floor).
Ceilings - 2416mm nominal ceiling height.
Cornice - 75mm cove cornice.
Paint - Taubmans ‘Endure’ to all internal walls -2 coat system, Flat acrylic to ceiling, Gloss enamel to interior timber and internal/external doors.
Electrical – As per the standard electrical plan.
Smoke Detectors - As per the standard electrical plan wired direct to mains power.
Doors - Flush Panel doors, cushioned door stops, glass sliding doors with key locks.
Door Furniture - Gainsborough 300 Contractor Series.
Double door robes where shown with melamine shelves.
Tapware - Laundry: Base MK2 Mixer Tap.
Clarke Eureka Plus laundry tub.
Stairs - Painted timber stringers with medium density fibreboard (MDF) treads and risers, painted handrail and square wrought iron balusters (expansion joint in stairwell covered by painted timber trim.
Split Level - Piers - 90x90 steel.
Large selection of ceramic tiles.
1800mm high semi framed shower screens with clear toughened glass and pivot door.
Bermuda 3 Function Shower Rail.
Framed mirror above vanity.
Mizu Drift towel rail or rings (where applicable).
Mizu Drift toilet roll holder.
Quality Decina bath.
Stylus Symphony Linked Toilet Suite.
Tapware: Bathroom/Ensuite: Posh Bristol MkII Mixer.
Facade - As per Artist’s impression in face bricks and concrete tiles.
Windows - Architectural styled aluminium windows as per facade selected, energy efficient weather seals and locks to all windows.
Bricks - Choose from an extensive range of bricks from our manufacturer Austral (Everyday Life, Old Colonial, Wilderness and Whitsunday).
Roof Tiles - Concrete roof tiles from Bristile (Classic range). This will create hundreds of no charge combinations.
Hot Water - Rheem Stellar 160lt, 5 star storage gas hot water system.
Doors - Front door: standard selection from Hume Doors (Vaucluse range), Laundry door: XF3 with half glazed panel or glass sliding door ( Design Specific).
Door Furniture - Front entry: Gainsborough Governor, Laundry: Gainsborough Governor.
Garage - Sectional overhead garage door.
Concrete Floor - Engineer designed to M classification, Engineer designed structural steel beams (where Applicable), Cover Grade concrete finish to patio’s and alfresco’s (where applicable).
Flooring (Split Level Homes) - Concrete slab to ground floor, Yellow Tongue to mid and first floor.
Reticulated chemical pest protection.
Timber frame/22.5° pitch roof trusses (based on wind rating N2 W33N).
42mm half splayed architraves and mouldings.
180 day fixed price tender.
Tap - External: Front and rear.
Balconies - External handrails (where applicable) are aluminium powder coated picket style handrail, tiled Balcony floors with slip resistant tiles from the standard range of floor tiles (excludes split level balconies).
Deck (rear split) - Modwood Composite Deck in choice of colours.
Deck Handrail (rear split) - Aluminium Powdercoated Picket Style.
