Enhance your lifestyle

Cleverly created to take the luxurious elements you’d expect from a larger home and transforming them into a smaller design, the Botanica has your family in mind.

Living space galore - The triumph of this multi-functional floor plan is without a doubt the unconfined rear living hub, complete with Gourmet Kitchen, Dining, Family/Living, airy Alfresco Cabana and large Games Room. There’s also a Home Theatre just off the main space providing either a quiet retreat for movie nights or an extension of the party!

It’s the little things - The Botanica is full of thoughtful features that make everyday living easy. There’s the Study Nook off the Dining space, the large Walk-In Pantry, Linen, architectural recesses, Double Garage and the undercover patio giving you shelter from the rain and a place for a quick chat with visitors as they leave.

Luxury Master Suite - Located at the front of the home, the beautiful Master Suite is a perfect sanctuary at the end of the day. Giving you a galley Walk-In Robe and large Ensuite with double-basin vanity is the icing on the cake of this gorgeous home.

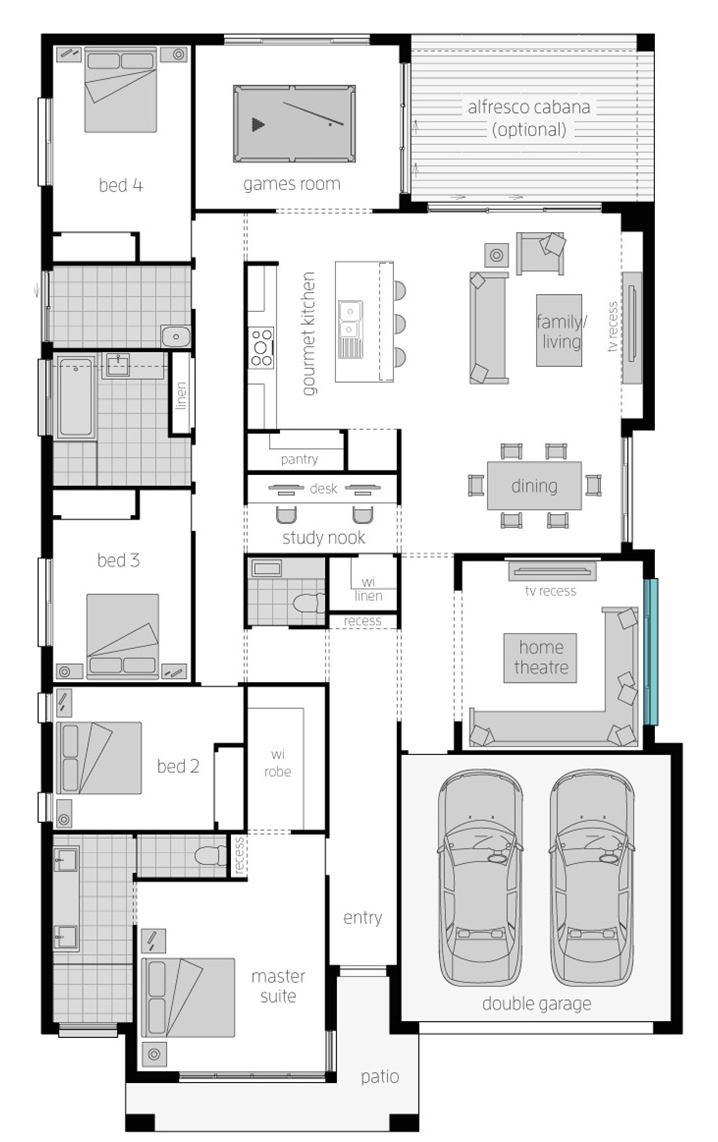

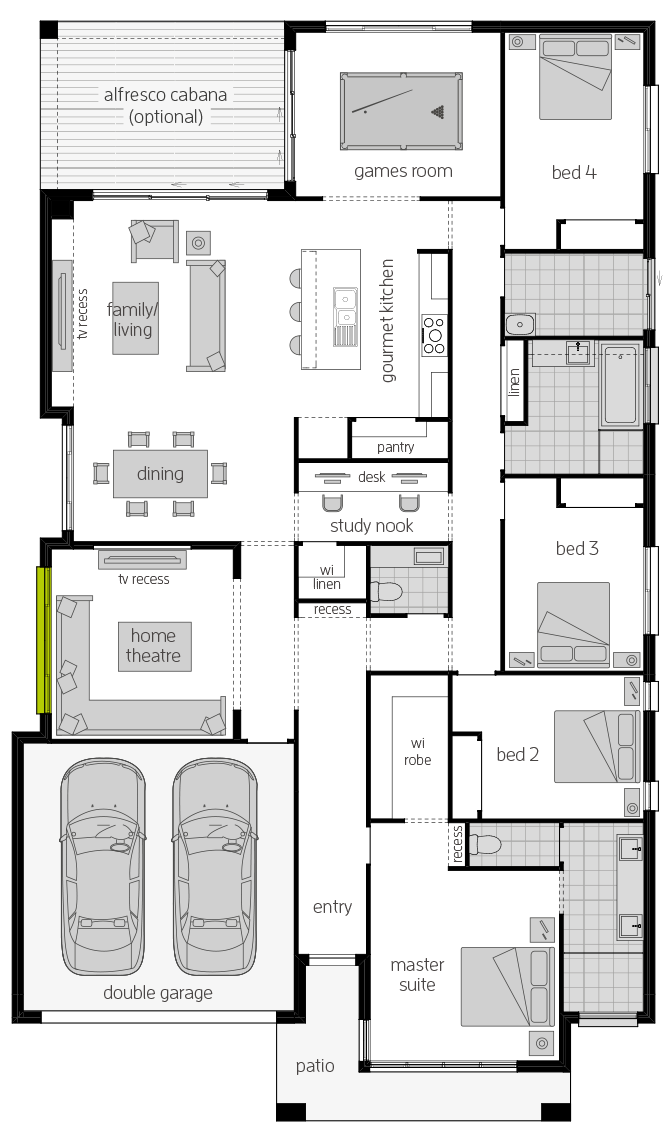

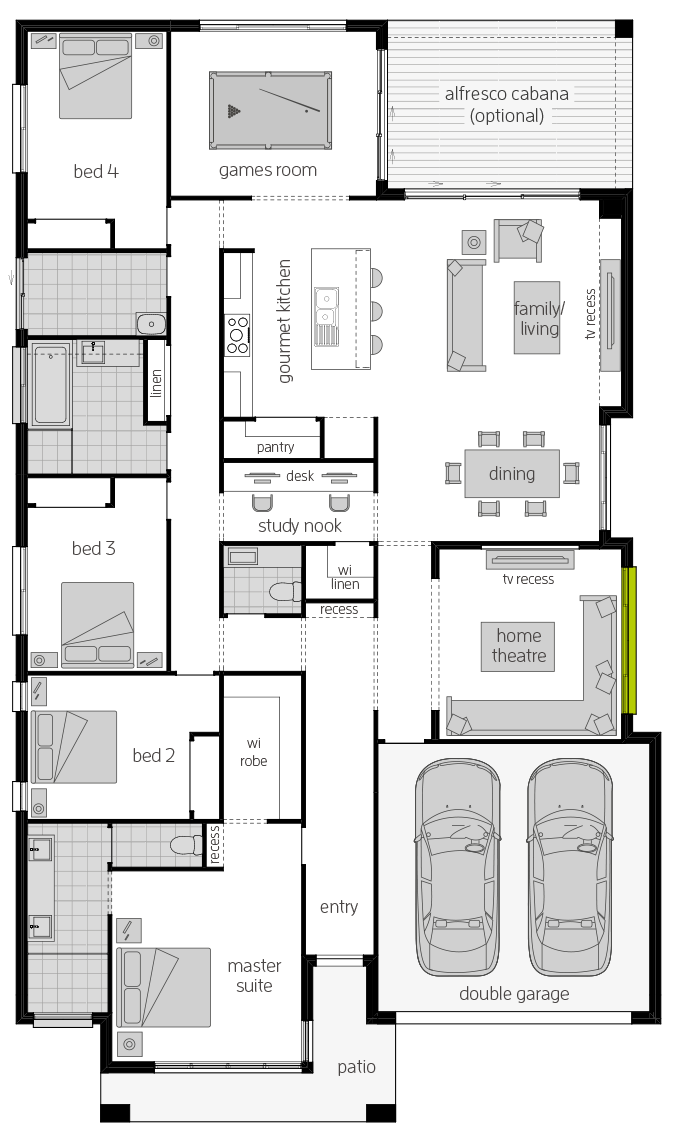

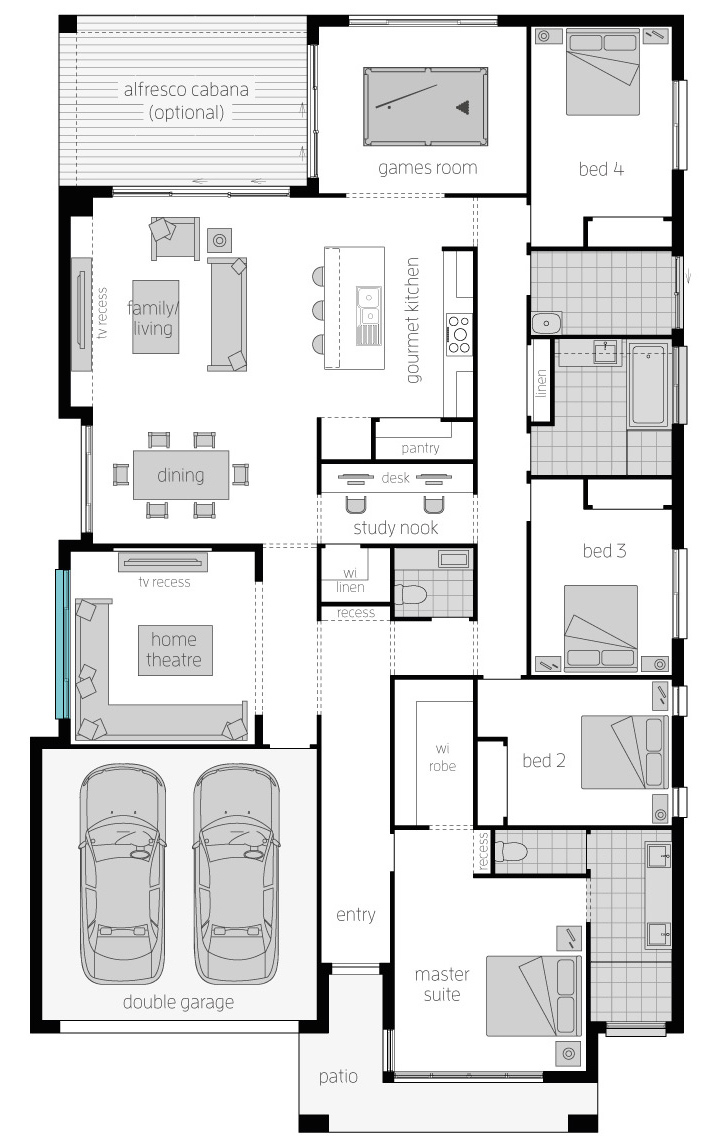

Floor Plans

Botanica
Show upgrades
Botanica floorplan lhs
Botanica floorplan lhs
Note: Floor plan will differ slightly with application of different facades. Block widths required differ from area to area, are indicative only and subject to council guidelines and developer requirements. Please check with your Building and Design consultant for details in your area. Total (m²) area includes alfresco or alfresco grande. Non-fixed furniture shown on floor plans, including desks in Study and Study Nooks are indicative only and not included.
4
 Bed
2
 Bath
2
 Car
1
 Storey
Block Width
15.00m
 House Width
13.15m
 House Length
21.50m

Room Dimensions

Family/Living
5.1 x 4.4 (m)
Dining
4.5 x 2.5 (m)
Master Suite
3.9 x 3.9 (m)
Bed 2
3.9 x 3.0 (m)
Bed 3
2.9 x 4.0 (m)
Bed 4
2.9 x 4.4 (m)
Home Theatre
3.7 x 3.9 (m)
Games Room
4.2 x 3.4 (m)
Study Nook
3.1 x 1.6 (m)
Double Garage
5.6 x 5.5 (m)
Alfresco Cabana
5.0 x 3.4 (m)

Additional Features

  • Home Theatre
  • Study Nook
  • Games Room
x
Botanica floorplan lhs
Botanica floorplan lhs

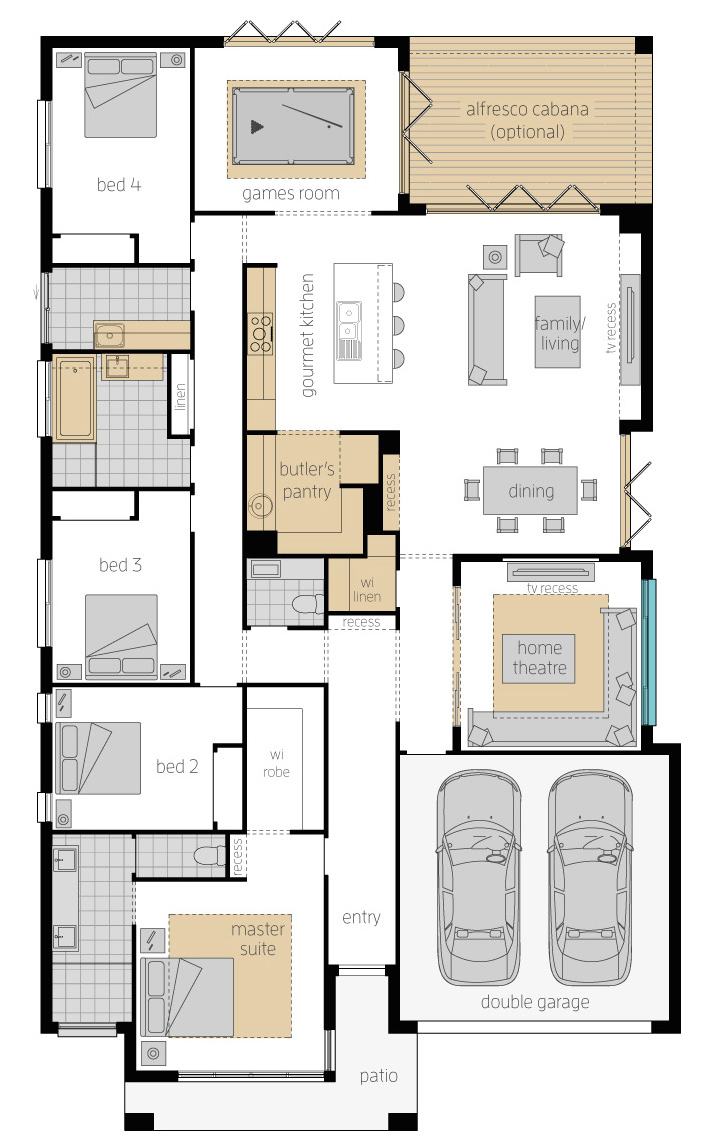

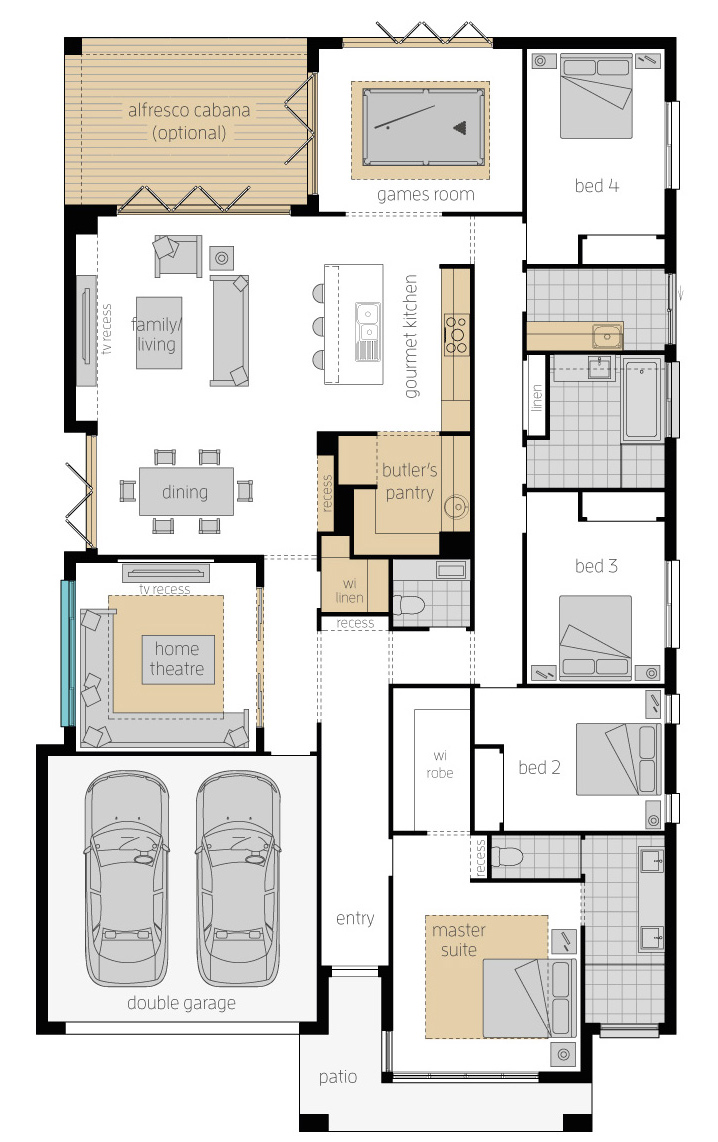

Show upgrades
Botanica upgrade floorplan lhs
Botanica upgrade floorplan lhs
Note: Floor plan will differ slightly with application of different facades. Block widths required differ from area to area, are indicative only and subject to council guidelines and developer requirements. Please check with your Building and Design consultant for details in your area. Total (m²) area includes alfresco or alfresco grande. Non-fixed furniture shown on floor plans, including desks in Study and Study Nooks are indicative only and not included.
4
 Bed
2
 Bath
2
 Car
1
 Storey
Block Width
17.90m
 House Width
16.00m
 House Length
21.50m

Room Dimensions

Family/Living
5.1 x 4.4 (m)
Dining
4.5 x 2.5 (m)
Master Suite
3.9 x 3.9 (m)
Bed 2
3.9 x 3.0 (m)
Bed 3
2.9 x 4.0 (m)
Bed 4
2.9 x 4.4 (m)
Home Theatre
3.7 x 3.9 (m)
Games Room
4.2 x 3.4 (m)
Study
2.7 x 3.6 (m)
Double Garage
5.6 x 5.5 (m)
Alfresco Cabana
5.0 x 3.4 (m)

Additional Features

  • Home Theatre
  • Butler's Pantry
  • Study

Upgrade Options

  • Alfresco Cabana 5.0m x 3.4m
  • Alternate Kitchen layout with one appliance tower
  • Bi-fold door in lieu of stacker to Family/Living and Games Room side wall
  • Bi-Fold door in lieu of window to Dining and Games Room rear wall
  • Butler’s Pantry
  • Coffered ceiling to Games Room, Home Theatre and Master Suite
  • Feature sliding doors to Home Theatre
  • Laundry bench with overhead cupboards
  • Side Children’s Activity (not shown on plan)
  • Stacker door in lieu of window to Dining and window to Games Room rear wall (not shown)
  • Study (Elite) 2.7m x 3.6m with square set window opening
x
Botanica upgrade floorplan lhs
Botanica upgrade floorplan lhs

Images

Images Facades

Enquiry



Enquire about your favourite home design today or give a building and design consultant a call on 1300 555 382.

* Note: If you're enquiring about Granny Flats, they are not offered as a stand-alone build, they are constructed at the same time as your main residence.

Virtual Tour

Inclusions

Kitchen
Internal
Bathroom
External
European designed gourmet laminated kitchen with attractive laminated bench tops.
Tapware: Posh Bristol MkII Mixer.
Dishwasher opening with connections.
Microwave shelf with power point.
Large pantry with ventilated shelving.
Fridge area for 1.0 wide fridge freezer unit.
Full height ceramic tiling to Kitchen splash back
Choice of quality Omega cooking appliances: Cooktop - Gas Omega OG6OXA (stainless steel) or Electric Omega OC64KZ, Oven – OO651XR (stainless steel), Rangehood – Recirculating ORW9XA stainless steel canopy.
Insulation - R3.0 insulation to ceilings and R2.0 to external walls excluding garage.
Ceilings - 2416mm nominal ceiling height.
Cornice - 75mm cove cornice.
Paint - Taubmans ‘Endure’ to all internal walls -2 coat system, Flat acrylic to ceiling, Gloss enamel to interior timber & internal/external doors.
Electrical – As per the standard electrical plan.
Smoke Detectors - As per the standard electrical plan wired direct to mains power.
Doors - Flush Panel doors, Cushioned door stops, Glass sliding doors with key locks.
Door Furniture - Gainsborough 300 Contractor Series.
Double door robes where shown with melamine shelves.
Tapware - Laundry: Base MK2 Mixer Tap.
Clarke Eureka Plus laundry tub.
Large selection of ceramic tiles.
1800mm high semi framed shower screens with clear toughened glass and pivot door.
Bermuda 3 Function Rail Shower.
Framed mirror above vanity.
Mizu Drift towel rail or rings (where applicable).
Tapware - Bathroom/Ensuite: Posh Bristol MkII Mixer.
Mizu Drift toilet roll holder.
Quality Decina bath.
Stylus Symphony Linked Toilet Suite.
Facade - As per Artists impressions in face bricks/concrete tiles.
Windows - Architectural styled aluminium windows as per facade selected. Energy efficient weather seals and locks to all windows.
Bricks - Choose from an extensive range of bricks from our manufacturer Austral (Everyday Life and Old Colonial).
Roof Tiles - Concrete roof tiles from Bristile (Classic range). This will create hundreds of no charge combinations.
Hot Water - Rheem Stellar 160lt, 5 star storage gas hot water system.
Doors - Front door: standard selection from Hume Doors (Vaucluse Range), Laundry door: XF3 with half glazed panel or glass sliding door (Design Specific).
Door Furniture - Front entry: Gainsborough Governor, Laundry : Gainsborough Governor.
Garage Door - Sectional overhead garage door.
Concrete Floor - Engineer designed to M classification. Cover Grade concrete finish to Patio’s and Alfresco’s (where applicable).
Reticulated chemical pest protection.
Timber frame/22.5° pitch roof trusses (based on wind rating NW2 33N).
42mm bevelled architraves and mouldings.
180 day fixed price tender.
Tap - External: Front and rear.
