A brand new Two Storey home can be yours.

The Luka is a wonderfully functional Two Storey family home design, with ample space for everything your family needs and nothing they don’t. Perfect for a narrow-block, the highly functional design starts with a Double Garage, through into the central open plan Kitchen, Dining and Family/Living spaces opening on to the optional Alfresco.

Upstairs are four spacious Bedrooms, including the Master Suite boasting a walk in Robe with a private balcony to relax at the end of the day. All Bedrooms have Built-In Robe’s, with the flexibility to create a Children’s Activity or Study in place of one of the Bedrooms.

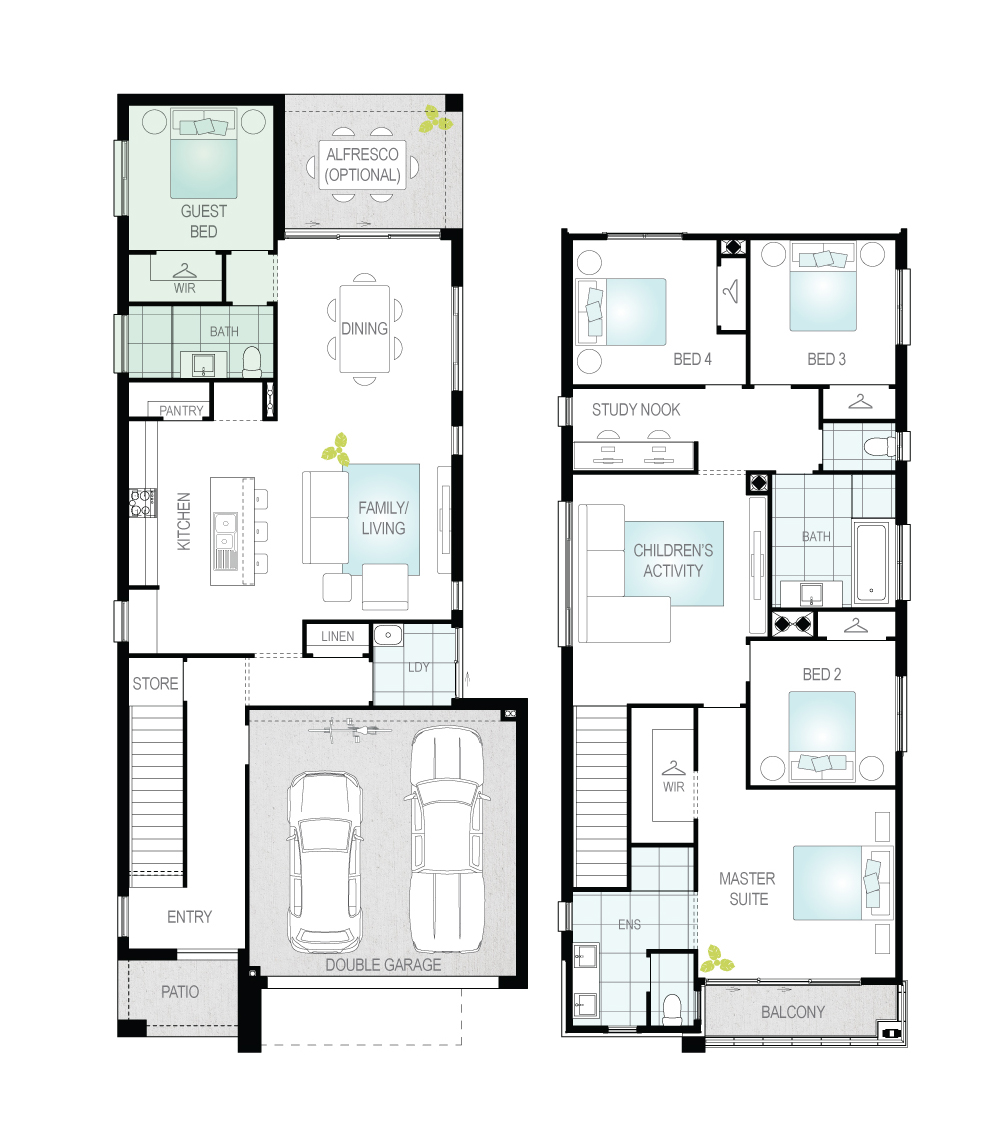

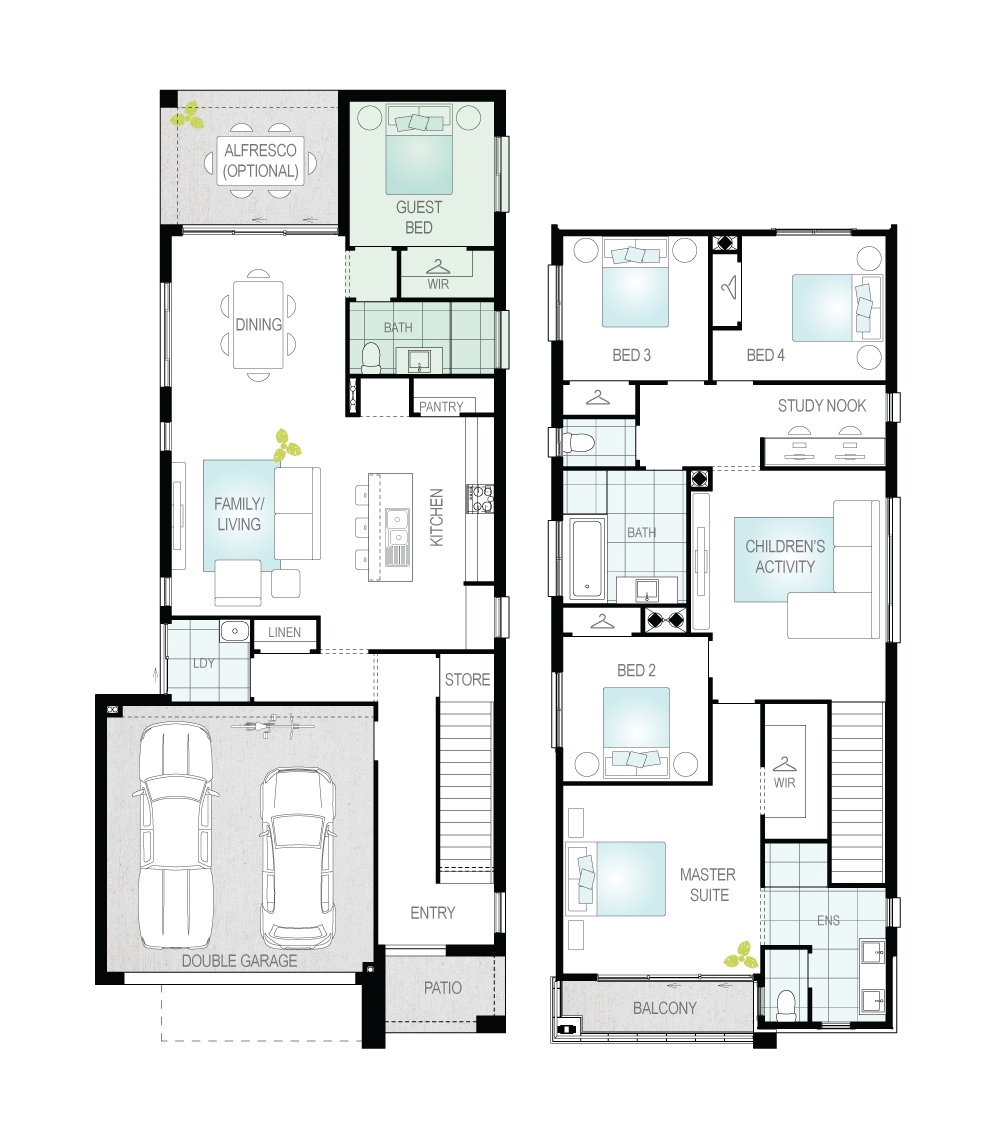

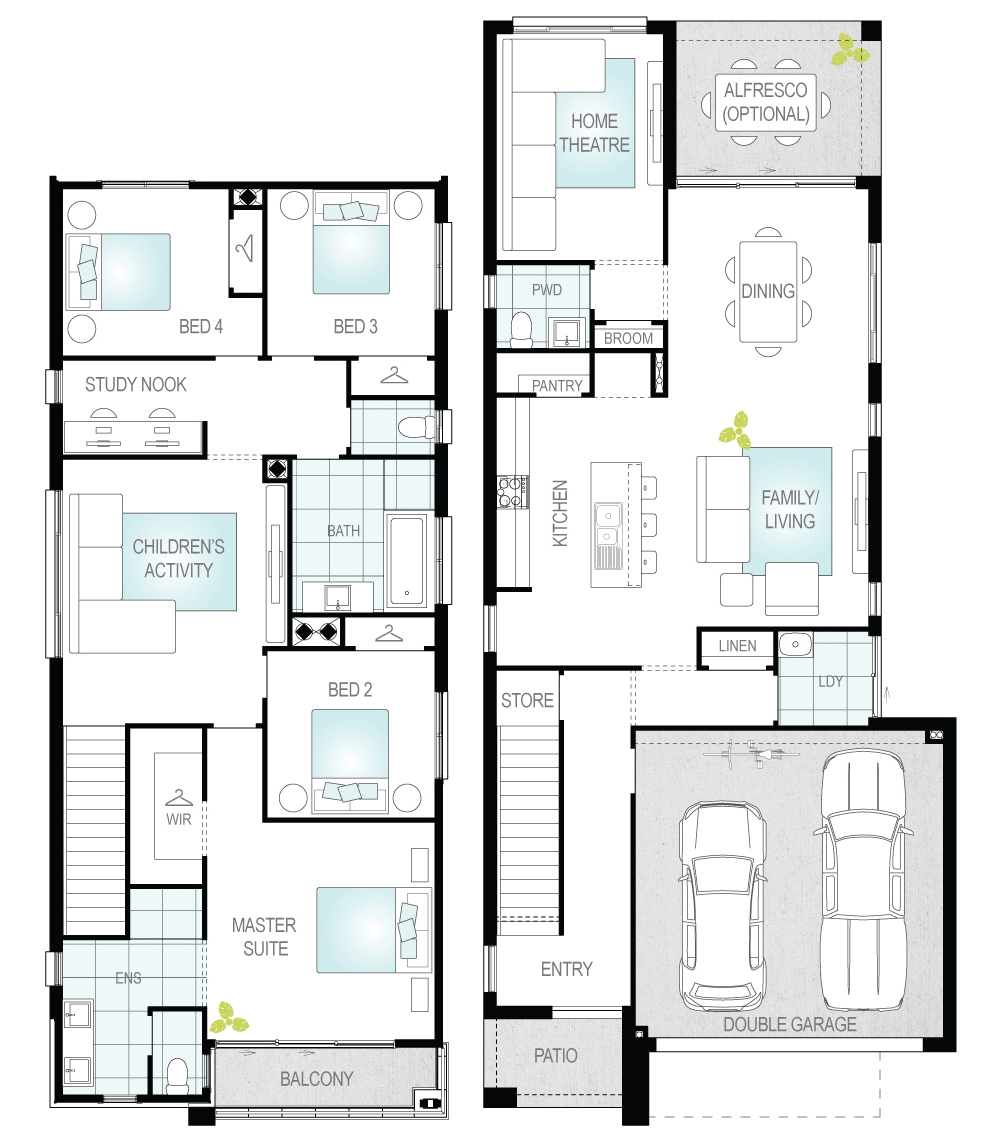

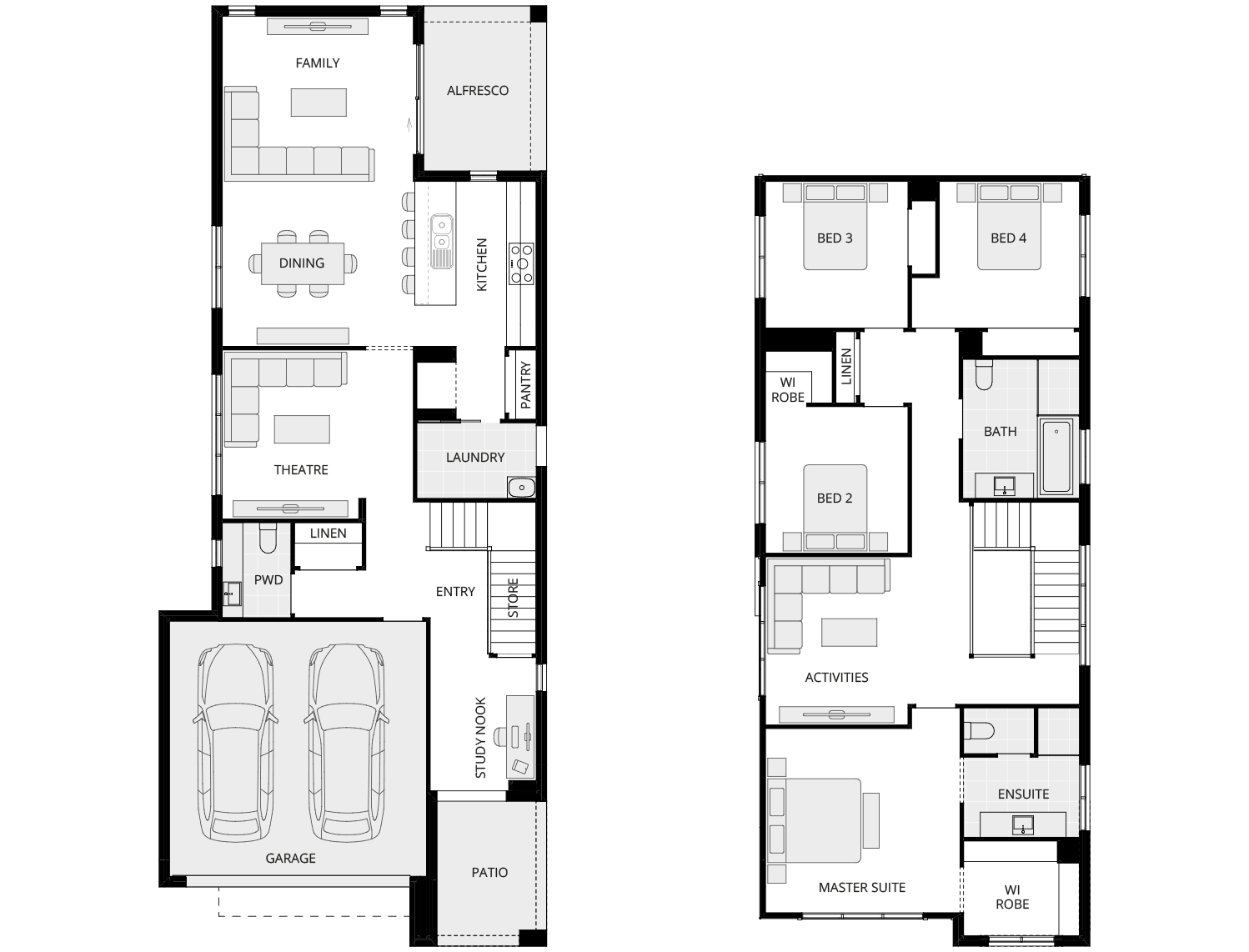

Floor Plans

Show upgrades
Note: Floor plan will differ slightly with application of different facades. Block widths required differ from area to area, are indicative only and subject to council guidelines and developer requirements. Please check with your Building and Design consultant for details in your area. Total (m²) area includes alfresco or alfresco grande.
4
 Bed
2.5
 Bath
2
 Car
2
 Storey
Block Width
10.00m
House Width
8.47m
House Length
16.79m
Total
216.86m²

Room Dimensions

Family/Living/Dining
4.1 x 6.6 (m)
Master Suite
4.1 x 3.4 (m)
Bed 2
3.0 x 2.8 (m)
Bed 3
3.0 x 2.8 (m)
Bed 4
3.6 x 2.8 (m)
Garage
5.5 x 5.5 (m)
Alfresco
3.8 x 2.8 (m)
Show upgrades
Note: Floor plan will differ slightly with application of different facades. Block widths required differ from area to area, are indicative only and subject to council guidelines and developer requirements. Please check with your Building and Design consultant for details in your area. Total (m²) area includes alfresco or alfresco grande.
4
 Bed
2
 Bath
2
 Car
2
 Storey
Block Width
10.00m
House Width
8.47m
House Length
19.80m
Total
260.43m²

Room Dimensions

Family/Living
4.1 x 4.1 (m)
Dining
3.6 x 3.7 (m)
Master Suite
4.1 x 3.9 (m)
Bed 2
3.0 x 3.0 (m)
Bed 3
3.0 x 3.0 (m)
Bed 4
3.0 x 3.0 (m)
Home Theatre
3.0 X 4.1 (m)
Children's Activity
4.0 x 4.7 (m)
Study Nook
2.5 x 1.7 (m)
Garage
5.5 x 5.5 (m)
Alfresco
3.7 x 2.8 (m)
Show upgrades
Note: Floor plan will differ slightly with application of different facades. Block widths required differ from area to area, are indicative only and subject to council guidelines and developer requirements. Please check with your Building and Design consultant for details in your area. Total (m²) area includes alfresco or alfresco grande.
5
 Bed
3
 Bath
2
 Car
2
 Storey
Block Width
10.00m
House Width
8.47m
House Length
19.80m
Total
260.43m²

Room Dimensions

Family/Living
4.1 x 4.1 (m)
Dining
3.6 x 3.7 (m)
Master Suite
4.1 x 3.9 (m)
Bed 2
3.0 x 3.0 (m)
Bed 3
3.0 x 3.0 (m)
Bed 4
3.0 x 3.0 (m)
Guest Bed
3.0 x 3.0 (m)
Children's Activity
4.0 x 4.7 (m)
Study Nook
2.5 x 1.7 (m)
Garage
5.5 x 5.5 (m)
Alfresco
3.7 x 2.8 (m)

Upgrade Options

  • Guest Bed option

Enquiry

Please complete the enquiry form and someone from our team will be in contact within 24 hours.

Alternatively you can give a building and design consultant a call on 1300 555 382 or see more contact details on the contact us page.

* Note: If you're enquiring about Granny Flats, they are not offered as a stand-alone build, they are constructed at the same time as your main residence.

Inclusions

Kitchen
Internal
Bathroom
External
European designed gourmet laminated kitchen with attractive laminated bench tops.
1¾ bowl kitchen sink (as per plan) Stylus R150.
Dishwasher opening with connections.
Microwave shelf with power point (where applicable).
Pantry with 4 ventilated wire shelves.
Fridge area as per plan.
Full height ceramic tiling to kitchen splashback.
Tapware - Posh Bristol MKII flickmixer tap.
Appliances - Cooktop: Artusi Gas CAGH600X (stainless steel) OR Artusi Electric CACC1 (ceramic), Oven: Artusi A0601X/1 (stainless steel), Rangehood: Artusi Recirculating ASO600RX stainless steel slide out.
Paint - Taubmans ‘Endure’ to all internal walls, Flat acrylic to ceiling, Gloss to interior timber and internal/external doors.
Doors - Flush Panel Doors, Cushioned door stops, Glass sliding doors with key locks. Laundry - XF3 External door with clear glazing.
Door furniture - Gainsborough Classic Knob. Gainsborough Governor stainless steel knob (if applicable).
Wardrobes & linen cupboards - White ventilated shelving with white hanging rail to robes and white ventilated shelving to WIR & linen.
Laundry Tapware - Bristol MKII Flickmixer.
Clarke Eureka Plus laundry tub.
Ceilings - 2400mm nominal ceiling height, 90mm cove cornice, 67mm half splayed architraves and mouldings.
Electrical - As per the standard electrical plan.
Smoke Detectors - As per standard electrical plan wired direct to mains power.
Stairs (two storey designs only)- Painted timber stringers with medium density fibreboard (MDF) treads and risers, painted handrail and plasterboard dwarf wall
European designed laminated vanities with attractive laminated bench tops.
Large selection of ceramic tiles.
1800 high semi framed shower screens with clear toughened glass with pivot door.
Gen X Commander showerhead.
Framed mirror above vanity.
Gen X towel rail or rings.
Gen X toilet roll holder.
Stylus Basis bath.
Symphony Connector toilet suite.
Tapware - Gen X cross handle taps.
120 day fixed price tender.
Timber Frame/22.5° pitch Roof Trusses (where applicable) (based on wind rating N2 W33N).
Reticulated liquid chemical pest treatment.
Facade - Classic facade included.
Concrete Slab - Engineer designed to M classification.
Bricks & Roofing - Bricks: Austral (Everyday Life Range). Roof tiles: Bristile Classic Concrete Range.
Insulation - R3.0 insulation to ceilings and R2.0 to external walls excluding garage.
External tapware - Front and rear.
Garage - Sectional garage door.
Doors - Front entry: XV1.
Door Furniture - Front entry: Gainsborough Governor stainless steel knob.
Architectural styled aluminum windows as per facade selected.
Energy efficient weather seals and locks to all windows.
