Nobleman

Turn day-to-day tasks into leisurely activities

The Nobleman ticks all the boxes when it comes to functionality and luxurious living. The range of built-in storage, Double Garage, two-way Powder Room and the kitchen island bench with breakfast bar are all small additions to take for granted and make life that little bit easier.

Space for everyone - Meanwhile, the abundance of living zones provide space for every household member, from the Children’s Activity with Study Nook to the central living area adjoined to the Alfresco Cabana and Home Theatre.

Parents retreat - However, when it comes to the crowning jewel of the Nobleman, the Master Suite is the clear winner. Separated from the remainder of the home through a private hallway, this spacious Bedroom is one to call your own, offering a grand Walk-In Robe and dual vanity Ensuite to enhance every day.

The careful architectural thought and variety of facades available confirm that the Nobleman is the place to call home.

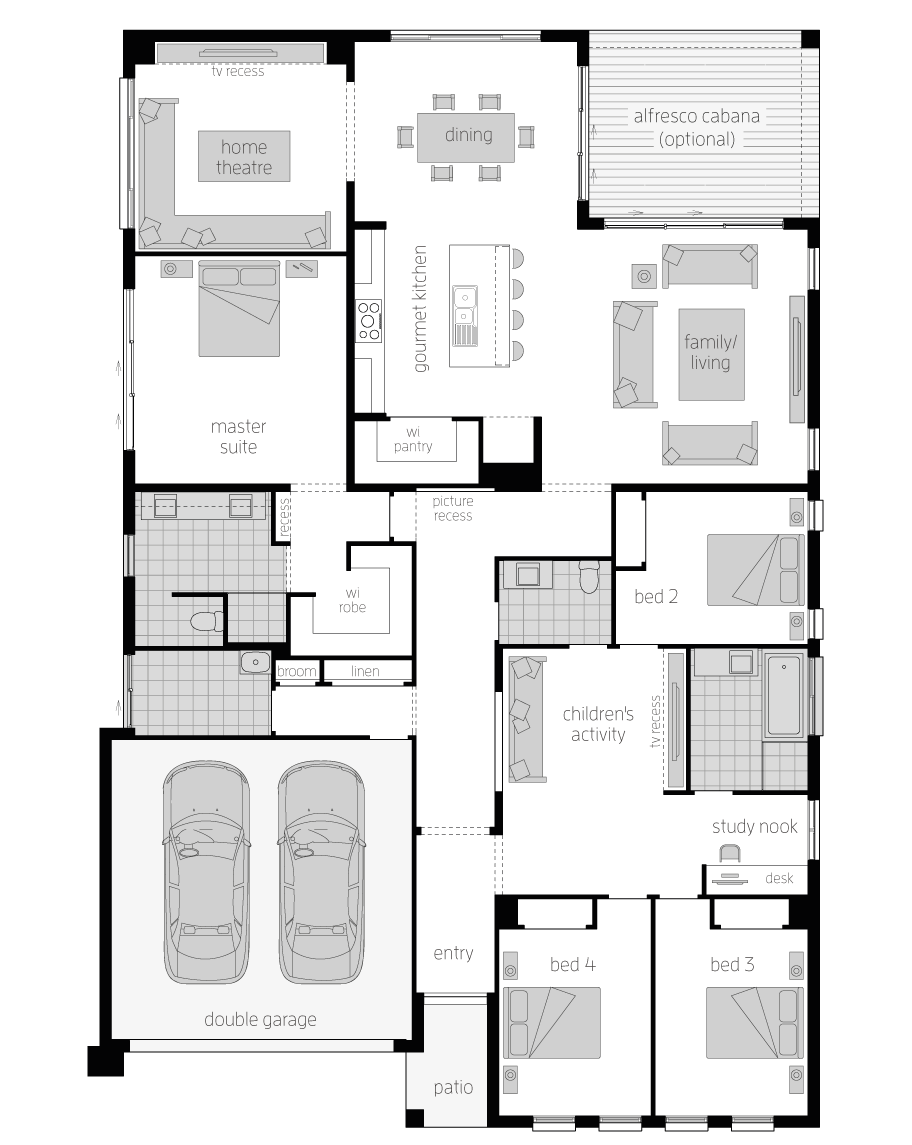

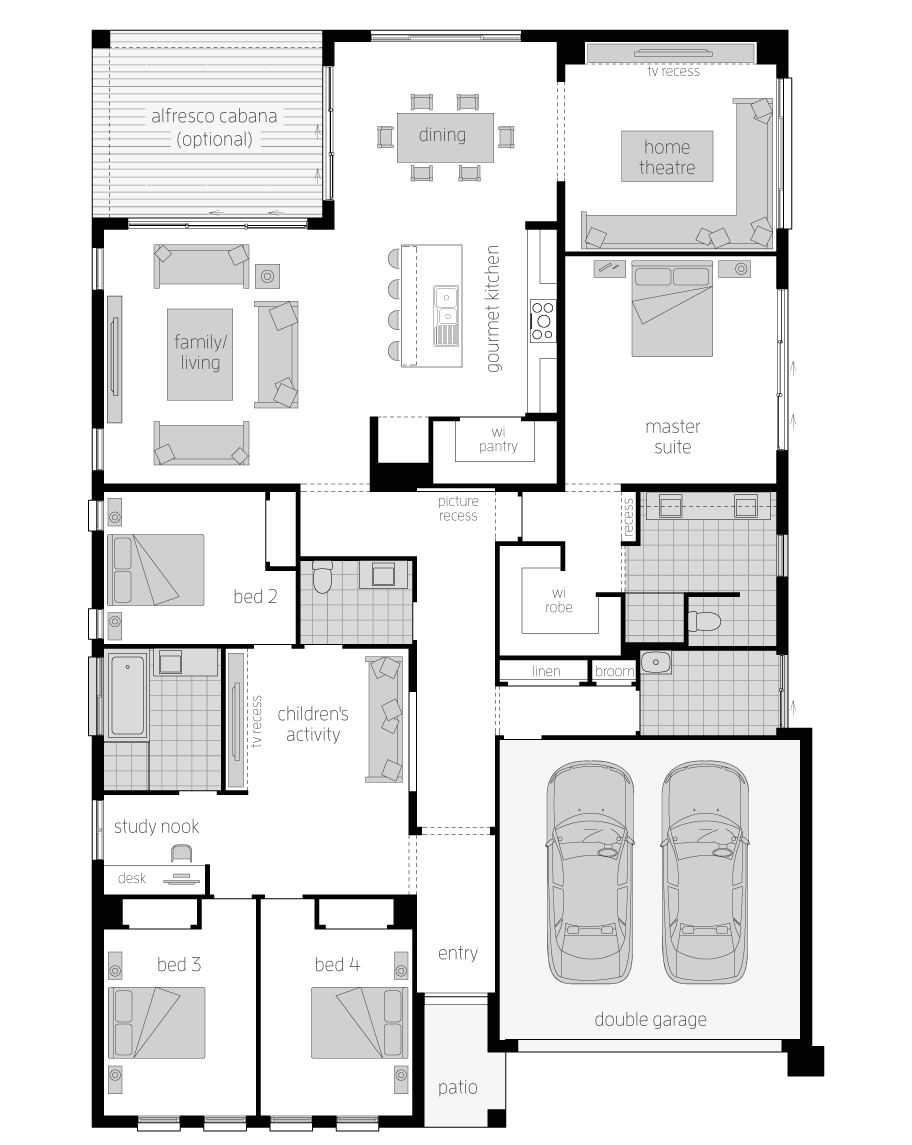

Floor Plans

Show upgrades

Note: Floor plan will differ slightly with application of different facades. Block widths required differ from area to area, are indicative only and subject to council guidelines and developer requirements. Please check with your Building and Design consultant for details in your area. Total (m²) area includes alfresco or alfresco grande.

Bed

2.5

Bath

Car

Storey

Block Width

18.00m

House Width

14.40m

House Length

21.87m

Total

297.86m²

Room Dimensions

Family/Living

5.9 x 5.1 (m)

Dining

4.5 x 4.1 (m)

Master Suite

4.2 x 4.6 (m)

Bed 2

3.8 x 3.1 (m)

Bed 3

3.1 x 4.3 (m)

Bed 4

3.0 x 4.3 (m)

Home Theatre

4.2 x 4.2 (m)

Children’s Activity

3.7 x 4.9 (m)

Study Nook

2.1 x 2.0 (m)

Double Garage

6.0 x 6.0 (m)

Alfresco Cabana

4.6 x 3.7 (m)

Additional Features

Home Theatre
Children's Activity
Study Nook
Powder Room

Facades

Contemporary Facade

Leon Facade

Burton Facade

Classique Facade

Trend Facade

Provincial Facade

Balinese Tropicana D Facade

Chatsbury Facade

Classic Facade



Enquiry

Please complete the enquiry form and someone from our team will be in contact within 24 hours.

Alternatively you can see more contact details on the contact page or give a building and design consultant a call.

Inclusions

Kitchen

Internal

Bathroom

External

European designed gourmet laminated kitchen with attractive laminated bench tops with overhead cupboards and bulkhead.

Dishwasher opening with connections.

Microwave shelf with power point.

Large pantry with ventilated shelving.

Posh Solus MkII 1 ¾ bowl overmount sink.

Fridge area for 1.0m wide fridge freezer unit.

Full height ceramic tiling to Kitchen bench splash back.

Choice of quality Omega cooking appliances: Cooktop 600mm – Gas Omega OG60XA (stainless steel)/Electric Omega OC64KZ, Oven 600mm – OO651XR (stainless steel), Rangehood 900mm – Recirculating ORW9XA stainless steel canopy.

Insulation - R4.1 insulation to ceilings and R2.0 to external walls excluding Garage, Patio and Alfresco (excludes insulation between ground floor and first floor for Two Storey and Split Level).

Insulation - Insulated lagging to hot and cold water pipes in ceiling space One roof ventilator and two eave vents.

Insulation - Anticon foil faced blanket (only applicable for Colorbond roof).

Ceilings - 2400mm nominal ceiling height.

Cornice - 75mm cove cornice.

Paint - Taubmans ‘Endure’ to all internal walls -2 coat system, Flat acrylic to ceiling, Gloss enamel to interior timber and internal/external doors.

Electrical - As per standard electrical plan, including smoke detectors wired direct to mains power.

Doors - Front door: standard selection from Hume Doors (Vaucluse range), Laundry door: XF3 with half glazed panel or glass sliding door( design specific), Internal: Flush Panel doors, Cushioned door stops, Glass sliding doors with key locks.

Doors - 42mm half splayed architraves and mouldings.

Door Furniture - Front entry & Laundry: Gainsborough Governor, Internal: Gainsborough 300 Contractor Series.

Double door robes with pull handle including fixed melamine shelf and hanging rail.

Clarke Eureka Plus laundry tub.

Stairs (Two Storey & Split Level only) - Painted timber stringers with medium density fibreboard (MDF) treads and risers, painted handrail and square wrought iron balusters (expansion joint in stairwell covered by painted timber trim).

Large selection of ceramic tiles.

1800mm high semi framed shower screens with clear toughened glass and pivot door.

Bermuda 3 function shower rail.

Framed mirror above vanity.

Mizu Drift towel rail or rings (where applicable).

Mizu Drift toilet roll holder.

Quality Decina bath.

Stylus Symphony Linked toilet suite.

Tapware: Posh Bristol MkII Mixer Tapware

180 day fixed price tender.

Timber frame/22.5° pitch roof trusses (based on wind rating N2 W33N).

Geotechnical soil classification report.

Electronic detailed contour survey.

Fixed priced piering (concrete or screw piers) to even bearing as determined by engineer in accordance to standards AS 2870-2011.

Facade - Classic facade as artist’s impression in face bricks and concrete roof tiles.

Windows - Architectural styled aluminium windows as per facade selected.

Window hardware - Energy efficient weather seals and locks to all windows.

Concrete floor - Engineer designed to M classification.

Concrete floor - Engineer designed structural steel beams (where applicable).

Cover Grade concrete finish to Patio’s and Alfresco’s (where applicable).

Bricks - Choose from an extensive range of bricks from our manufacturer Austral (Everyday Life and Old Colonial).

Roof tiles - Concrete roof tiles from Bristile (Classic range).

Rheem Stellar 160lt, 5 star storage gas hot water system.

4,500L aboveground slimline Colorbond water tank on concrete slab with pump and 90mm painted downpipes.

Garage door - 4.8 wide sectional overhead garage door.

Balconies (Two Storey & Split Level Only) - External handrails (where applicable) are aluminium powder coated picket style handrail.

Balconies (Two Storey Only) - Tiled Balcony floors with slip resistant tiles from the standard range of floor tiles (excludes Split Level balconies).

Split Level Only - Deck (rear split) - Modwood Composite Deck in choice of colours.

Split Level Only - Flooring - concrete slab to ground floor, yellow tongue to mid and first floor.

Split Level Only - Piers - 90x90 steel.
