Open-Plan Grandeur

The light-filled Diplomat is the luxury home you’ve always dreamed of – wide-open spaces, sun-soaked rooms and a special ambience that says ‘home’ from the minute you walk in the door.

Welcome in the light - Bringing you a seamless transition between indoor and outdoor living areas from three rooms of the architecturally-designed Diplomat, you’ll revel in the wonderful sense of light and space in the Dining, Family/Living and Gourmet Kitchen. Open the doors right back, feel the sun stream in and let the rest of the world rush by.

Generous living spaces - You’ll love the way the Diplomat adapts as a family home and lends itself to your lifestyle over the years. In addition to the central living space, there’s a comfortable Home Theatre that’s perfect for Netflix bingeing, as well as a Children’s Activity with Built-In Desk that gives the kids somewhere to kick back and relax on their own or with friends.

Luxury Master Suite - At the front of the house, well away from the kids’ wing, with its three Bedrooms, family Bathroom and Children’s Activity, is the sumptuous Master Suite. Featuring a luxury Walk-In Robe, serene Ensuite with double basin and generous sleeping space, it provides an inviting, well-earned sanctuary for parents at the end of the day.

Floor Plans

Diplomat

Diplomat Executive
Show upgrades

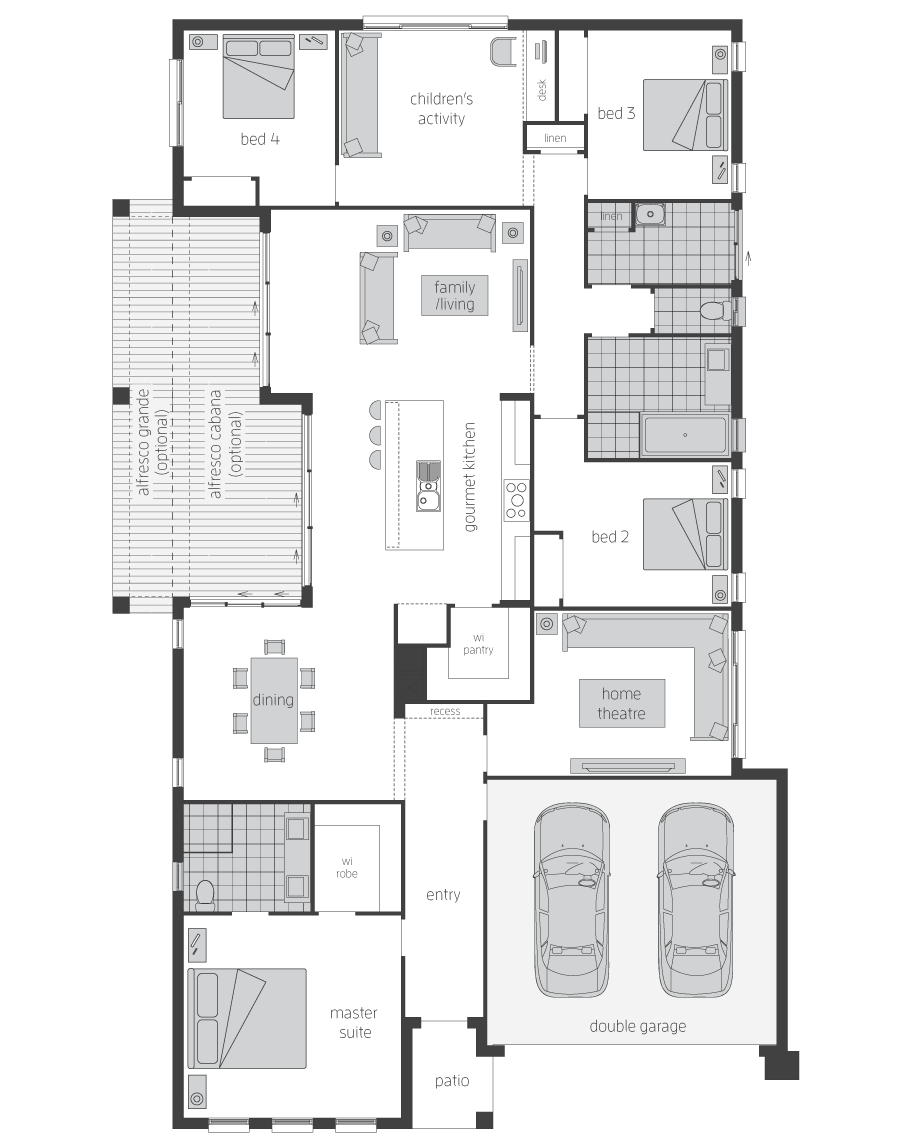

Floor Plan - Diplomat Home Design - Canberra - McDonald Jones
Floor Plan - Diplomat Home Design - Canberra - McDonald Jones
Note: Floor plan will differ slightly with application of different facades. Block widths required differ from area to area, are indicative only and subject to council guidelines and developer requirements. Please check with your Building and Design consultant for details in your area. Total (m²) area includes alfresco or alfresco grande. Non-fixed furniture shown on floor plans, including desks in Study and Study Nooks are indicative only and not included.
4
 Bed
2
 Bath
2
 Car
1
 Storey
Block Width
18.00m
 House Width
12.80m
 House Length
23.05m

Room Dimensions

Family/Living
5.4 x 3.8 (m)
Dining
4.4 x 4.0 (m)
Master Suite
4.5 x 4.2 (m)
Bed 2
4.1 x 3.0 (m)
Bed 3
3.0 x 3.5 (m)
Bed 4
3.2 x 3.7 (m)
Home Theatre
4.1 x 3.4 (m)
Children’s Activity
3.8 x 3.7 (m)
Double Garage
6.0 x 5.5 (m)
Alfresco Cabana
2.7 x 7.9 (m)
Alfresco Grande
4.4 x 8.6 (m)

Additional Features

  • Home Theatre
  • Children's Activity
  • Study Nook
x
Floor Plan - Diplomat Home Design - Canberra - McDonald Jones
Floor Plan - Diplomat Home Design - Canberra - McDonald Jones
Show upgrades
Floor Plan - Diplomat Home Design - Canberra - McDonald Jones
Floor Plan - Diplomat Home Design - Canberra - McDonald Jones
Note: Floor plan will differ slightly with application of different facades. Block widths required differ from area to area, are indicative only and subject to council guidelines and developer requirements. Please check with your Building and Design consultant for details in your area. Total (m²) area includes alfresco or alfresco grande. Non-fixed furniture shown on floor plans, including desks in Study and Study Nooks are indicative only and not included.
4
 Bed
2
 Bath
2
 Car
1
 Storey
Block Width
18.00m
 House Width
14.00m
 House Length
22.50m

Room Dimensions

Family/Living
5.4 x 3.9 (m)
Dining
4.3 x 3.5 (m)
Master Suite
3.8 x 4.9 (m)
Bed 2
4.2 x 3.0 (m)
Bed 3
3.1 x 3.2 (m)
Bed 4
3.2 x 3.2 (m)
Home Theatre
4.2 x 3.6 (m)
Garden Room
4.3 x 3.2 (m)
Double Garage
6.0 x 5.5 (m)
Alfresco Cabana
2.7 x 7.8 (m)
Alfresco Grande
4.2 x 8.5 (m)

Additional Features

  • Home Theatre
  • Garden Room
x
Floor Plan - Diplomat Home Design - Canberra - McDonald Jones
Floor Plan - Diplomat Home Design - Canberra - McDonald Jones

Images

Images Facades

Enquiry

Love Extraordinary

Enquire about your favourite home design today or give a building and design consultant a call on 1300 555 382.

* Note: If you're enquiring about Granny Flats, they are not offered as a stand-alone build, they are constructed at the same time as your main residence.

Inclusions

Kitchen
Internal
Bathroom
External
European designed gourmet laminated kitchen with attractive laminated bench tops with overhead cupboards and bulkhead.
Dishwasher opening with connections.
Microwave shelf with power point.
Large pantry with ventilated shelving.
Posh Solus MkII 1 ¾ bowl overmount sink.
Fridge area for 1.0m wide fridge freezer unit.
Full height ceramic tiling to Kitchen bench splash back.
Choice of quality Omega cooking appliances: Cooktop 600mm – Gas Omega OG60XA (stainless steel)/Electric Omega OC64KZ, Oven 600mm – OO651XR (stainless steel), Rangehood 900mm – Recirculating ORW9XA stainless steel canopy.
Tapware - Posh Bristol MkII Mixer Tap
Insulation - R4.1 insulation to ceilings and R2.0 to external walls excluding Garage, Patio and Alfresco (excludes insulation between ground floor and first floor for Two Storey and Split Level).
Insulation - Insulated lagging to hot and cold water pipes in ceiling space one roof ventilator and two eave vents.
Insulation - Anticon foil faced blanket (only applicable for Colorbond roof).
Ceilings - 2400mm nominal ceiling height.
Cornice - 75mm cove cornice.
Paint - Taubmans ‘Endure’ to all internal walls -2 coat system, Flat acrylic to ceiling, Gloss enamel to interior timber and internal/external doors.
Electrical - As per standard electrical plan, including smoke detectors wired direct to mains power.
Doors - Front door: standard selection from Hume Doors (Vaucluse range), Laundry door: XF3 with half glazed panel or glass sliding door( design specific), Internal: Flush Panel doors, Cushioned door stops, Glass sliding doors with key locks.
Doors - 42mm half splayed architraves and mouldings.
Door Furniture - Front entry & Laundry: Gainsborough Governor, Internal: Gainsborough 300 Contractor Series.
Clarke Eureka Plus laundry tub.
Stairs (Two Storey & Split Level only) - Painted timber stringers with medium density fibreboard (MDF) treads and risers, painted handrail and square wrought iron balusters (expansion joint in stairwell covered by painted timber trim).
Laundry tapware - Base MK2 Mixer Tap
Bedroom and robes - Double door robes with pull handle including fixed melamine shelf and hanging rail
Large selection of ceramic tiles.
1800mm high semi framed shower screens with clear toughened glass and pivot door.
Bermuda 3 function shower rail.
Framed mirror above vanity.
Mizu Drift towel rail or rings (where applicable).
Mizu Drift toilet roll holder.
Quality Decina bath.
Stylus Symphony Linked toilet suite.
Tapware: Posh Bristol MkII Mixer Tapware
180 day fixed price tender.
Timber frame/22.5° pitch roof trusses (based on wind rating N2 W33N).
Geotechnical soil classification report.
Electronic detailed contour survey.
Fixed priced piering (concrete or screw piers) to even bearing as determined by engineer in accordance to standards AS 2870-2011.
Facade - Classic facade as artist’s impression in face bricks and concrete roof tiles.
Windows - Architectural styled aluminium windows as per facade selected.
Window hardware - Energy efficient weather seals and locks to all windows.
Concrete floor - Engineer designed to M classification.
Concrete floor - Engineer designed structural steel beams (where applicable).
Cover Grade concrete finish to Patio’s and Alfresco’s (where applicable).
Bricks - Choose from an extensive range of bricks from our manufacturer Austral (Everyday Life and Old Colonial).
Roof tiles - Concrete roof tiles from Bristile (Classic range).
Rheem Stellar 160lt, 5 star storage gas hot water system.
4,500L aboveground slimline Colorbond water tank on concrete slab with pump and 90mm painted downpipes.
Garage door - 4.8 wide sectional overhead garage door.
Balconies (Two Storey & Split Level Only) - External handrails (where applicable) are aluminium powder coated picket style handrail.
Balconies (Two Storey Only) - Tiled Balcony floors with slip resistant tiles from the standard range of floor tiles (excludes Split Level balconies).
Split Level Only - Deck (rear split) - Modwood Composite Deck in choice of colours.
Split Level Only - Flooring - concrete slab to ground floor, yellow tongue to mid and first floor.
Split Level Only - Piers - 90x90 steel.
Split Level Only - Deck Handrail (rear split) - Aluminium powder coated Picket Style
Tapware - Front and rear
100% termite-proof frames and trusses
